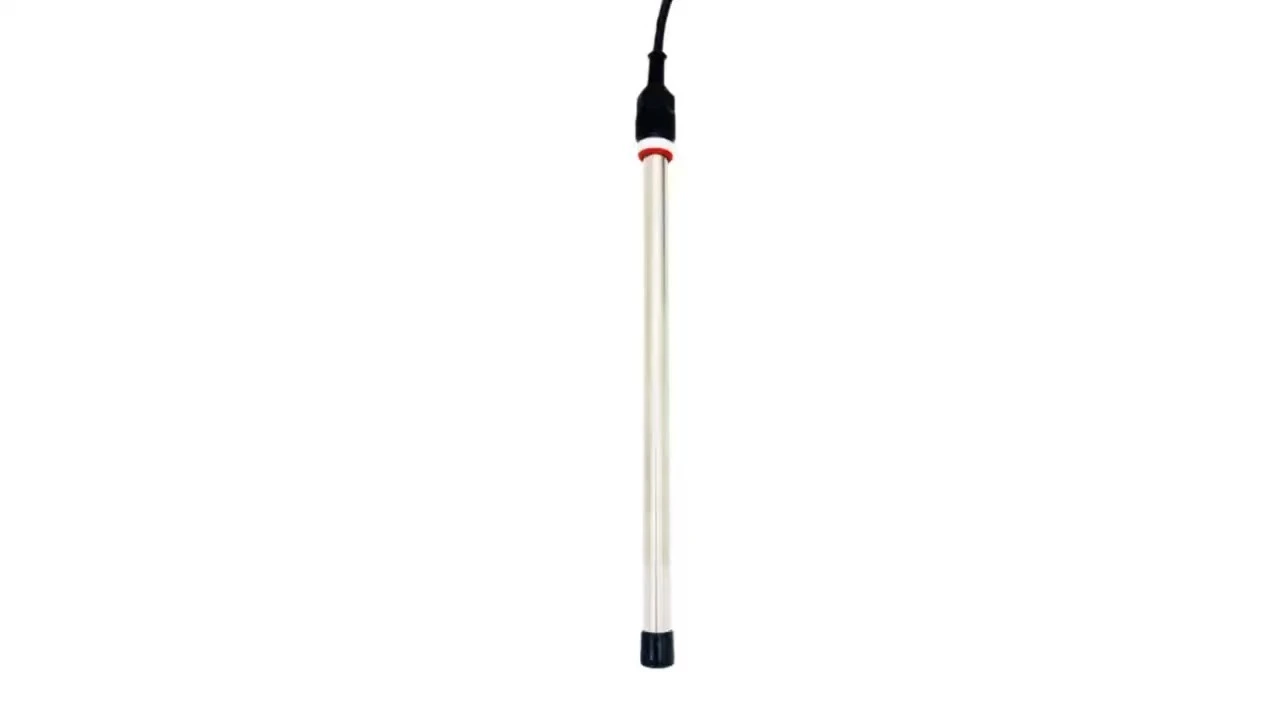

ACITEK oxygen sensor ACOxysens AC237150
Place of Origin: Shanghai, china
Purpose: Industry, laboratory, other
Warranty period: one year
Support customization: OEM, ODM
Logo: ACITEK
Model: AC237150
Type: DO sensor
Equipped with a rechargeable battery: No
Material: Stainless steel，PEEK
A-length: 120 mm,150mm，225mm
Diameter: 12mm
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Introduction
The ACOxysens electrochemical dissolved oxygen sensor is designed for water applications. Its key advantages are low maintenance, fast response, flow independence, and soiling resistance.
Designed for water monitoring in wastewater treatment, swimming pools, and fish farms, the ACOxysens electrochemical dissolved oxygen sensor simplifies maintenance with its non-replaceable membrane and electrolyte. Its fast response, flow insensitivity, and soiling resistance ensure reliable measurements.
Product application
Common applications Water, Energy, & Environment, Power Generation, Agri-Food and Beverage, Brewing, Winemaking
Enables extended sensor lifetime;
Easy integration into your process;
Low sensor maintenance;
Maintenance-Free Sensor Design:
Our ACOxysens sensor's maintenance-free design delivers time savings and cost-effective oxygen measurement for water applications.
It is not required to replace the membrane of the sensor or the electrolyte.
Fast Sensor Responsive Time:
We have designed the ACOxysens to be insensitive to water flow rate and
soiling,enabling a quick response time.
Product parameters
Process Connection |
PG13,5 |
Wetted Parts |
Stainless Steel 1.4435；PEEK (Polyetheretherketone) |
Electrical Connector |
5 m Fix Cable / Open End |
a-length |
120 mm,150mm，225mm， |
Measuring Range |
30 ppb to 40 ppm (DO) or 0.8 to 1000 mbar (pO₂) |
Electrolyte |
ACOxylyte |
Drift at Room Temperature |
< 1 % per week |
Membrane Cap |
Standard |
Oxygen Consumption |
Ca. 20 ng/h in air at 25 °C |
Temperature Sensor |
NTC 22 kOhm |
Current in Air at 25 °C |
40 - 110 nA |
Surface Quality of Steel |
Ra < 0.8 µm (N6) |
Electrode system |
Silver platinum combination |
Polarization Voltage and Time |
-670 ± 50 mV, ≥ 2 hours |
Serial Number |
Yes |
Response Time |
t98% < 60 s at 25 °C |
Certificate |
No |
Diameter |
12 mm |
Autoclavable |
No |
Steam Sterilizable |
No |
CIP |
No |
Operating Temperature Range |
0 to 60 °C |
Pressure Range bar g |
0 to 4 bar |
Max. CO₂ Partial Pressure |
0.01 bar |
Required Flow |
≥ 0.03 m/s |
Product details
Stainless Steel 1.4435；PEEK (Polyetheretherketone) EPDM (Ethylene propylene elastomer)； VMQ (Silicone elastomer)；Silicone；
Electrical Connector-5 m Fix Cable / Open End
Diameter 12 mm
FAQS
1
Is the length of this electrode optional？
Yes, the length of the electrode can be selected according to the customer's requirements. There are currently three types: 120mm, 150mm, and 225mm
2
What is the response time of this electrode？
What is the response time of this electrode?
At 25 degrees Celsius, the final reading of 98% (T98%) can be achieved in 60 seconds.
3
What are the advantages of stainless steel electrodes？
Advantages include: corrosion resistance, wear resistance, high temperature and high pressure resistance, easy cleaning and maintenance.
4
Can the cable for electrode matching be customized？
Yes, we can customize different lengths according to customer requirements.
