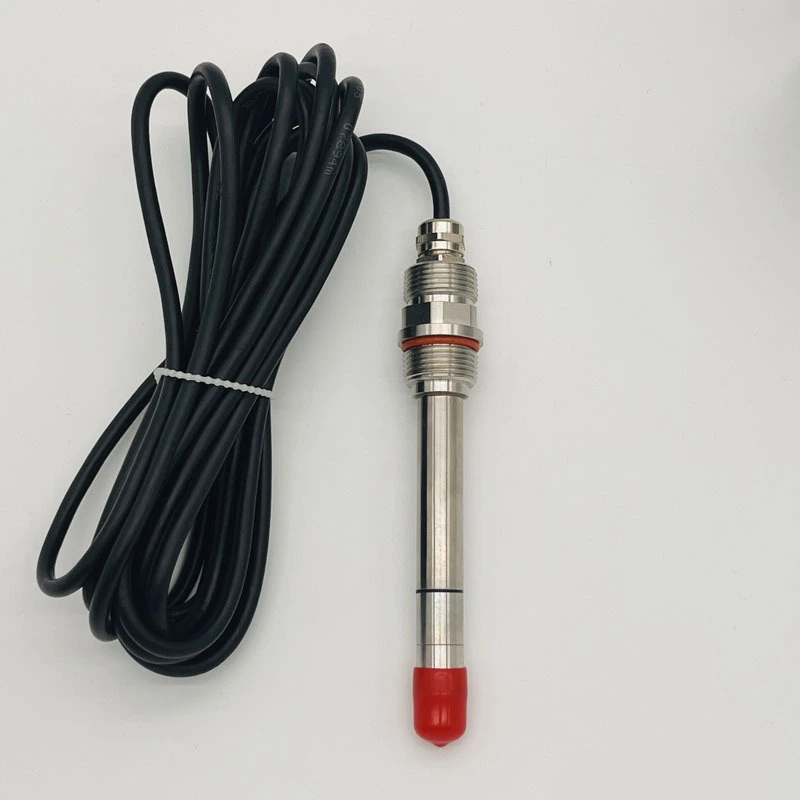

ACITEK LDO Model 1 （DO Probe with Luminescent Dissolved Oxygen Technology）
This ACITEK LDO probe comes ready to use right out of the box, with no calibration required for life of the sensor cap.The probe comes with a 1-year warranty, and the sensor cap has a 1-year warranty and is compatible with all ACITEK digital controllers.
Place of Origin: Shanghai, china
Purpose: Industry, laboratory, other
Warranty period: one year
Support customization: OEM, ODM
Logo: ACITEK
Model: ACITEK LDO Model 1
Type: DO sensor
Equipped with a rechargeable battery: No
Material: Stainless Steel
A-length: 163mm
Diameter: 16mm
Weight: 0.5 kg, probe only
Product parameters
|
Accuracy |
Below 5 ppm: ± 0.1 ppm |
Accuracy 2 |
Above 5 ppm: ± 0.2 ppm |
|
Accuracy 3 |
Temperature: ± 0.2 °C |
Body material |
Stainless |
|
Cable Length |
10 m (33 ft) |
Calibration Method |
All Probes are factory calibrated and ready to use |
|
Communication |
Modbus or 4-20mA |
Controller Compatibility |
G300, G400, G800 |
|
Diameter |
16 mm |
Dimensions (D x L) |
16 mm x 163 mm |
|
Flow Rate |
None required |
Interferences |
No Interferences from the following: H2S, pH, K+, Na+, Mg2+, Ca2+, |
|
Length |
163 mm |
Measurement Range 2 |
0 - 20.00 mg/L |
|
Measurement Range 3 |
0 - 200% saturation |
Operating Temperature Range |
0 - 50 °C |
|
Options |
None |
Pressure Range |
Max 3.5 bar |
|
Range |
0 - 20.00 ppm |
Repeatability |
± 0.1 ppm (mg/L) |
|
Resolution |
0.01 ppm (mg/L)；0.1% saturation |
Response Time |
T90 < 40 s；T95 < 60 s |
|
Sensor Cable |
10 m (31 ft.) terminated with quick-disconnect plug |
Sensor Immersion Depth |
Down to 34 m (112 ft.), 345 kPa (50 psi), maximum; |
|
Sensor Thread |
Outer thread |
Storage Conditions |
-20 °C to 70 °C |
|
Transmission Distance |
100 m (328 ft.) maximum |
Warranty |
12 months |
|
Weight |
0.5 kg, probe only |
Wetted Materials |
Sensor Cap: 316 Stainless Steel; Probe Body:316 Stainless Steel |
|
What's included |
Includes: sensor with cable, |
Product Introduction
Accurate monitoring of dissolved oxygen in source water and for precise aeration process control；The Luminescent Dissolved Oxygen (LDO), Model 1 is an optical dissolved oxygen probe that accurately measures dissolved oxygen levels in water.This optical DO probe has a robust design with a small footprint which allows for easier handling and enhanced durability from the LDO. Using this probe will save you time and money through overall reduction in your aeration blower energy usage.
Luminescent Dissolved Oxygen Technology: The LDO Model 1 uses luminescent dissolved oxygen technology within the O₂ sensor (oxygen sensor) cap ensuring high levels of accuracy.
Virtually no Maintenance Required: As this is an optical dissolved oxygen probe, there is virtually no maintenance required — as there are no membranes to replace, no electrolyte solution to replenish, and no anodes or cathodes to clean. Compare this with traditional optical DO probes which require sensor calibration (increasing maintenance).Just replace the cap every two years, you'll never miss a cleaning cycle or cap replacement.
Applications and Benefits
Applications: Discharge；Industrial Wastewater；Nutrient Monitoring；Sea Water；Secondary Treatment；Ultrapure Water；
Benefits: No Calibration Required: The ACITEK LDO probe uses luminescent dissolved oxygen technology. Traditional membrane style DO probes require sensor calibration, which increase maintenance requirements.
No Membranes to Replace: There is virtually no maintenance with ACITEK's breakthrough luminescent technology. There are no membranes to replace, no electrolyte solution to replenish, and no anode or cathode to clean.
No Complications: Our newest Model 1 DO probe has a robust design with a smaller footprint allows for easier handling with enhanced durability.
