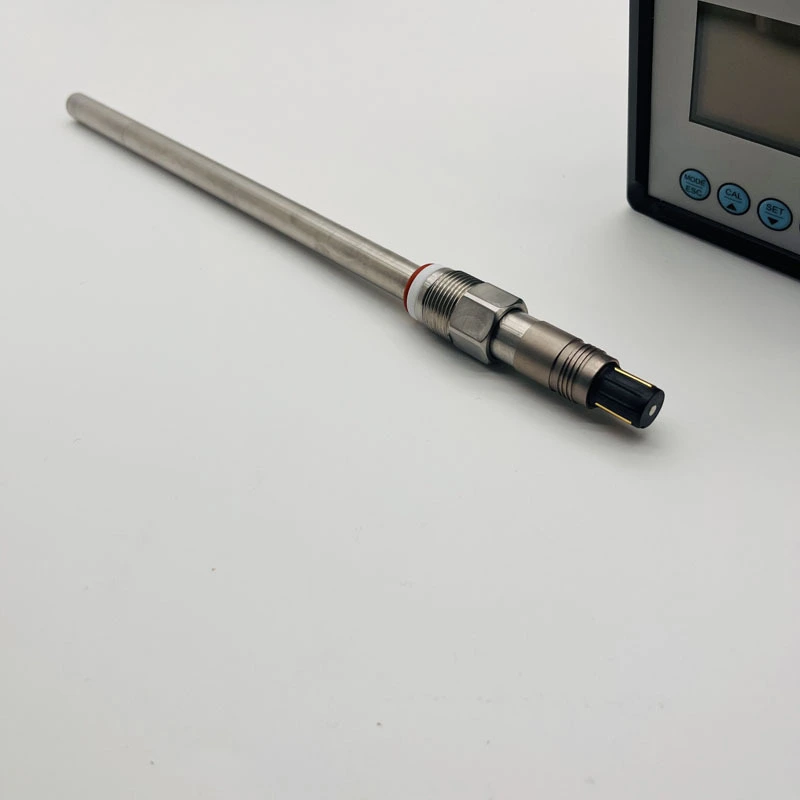

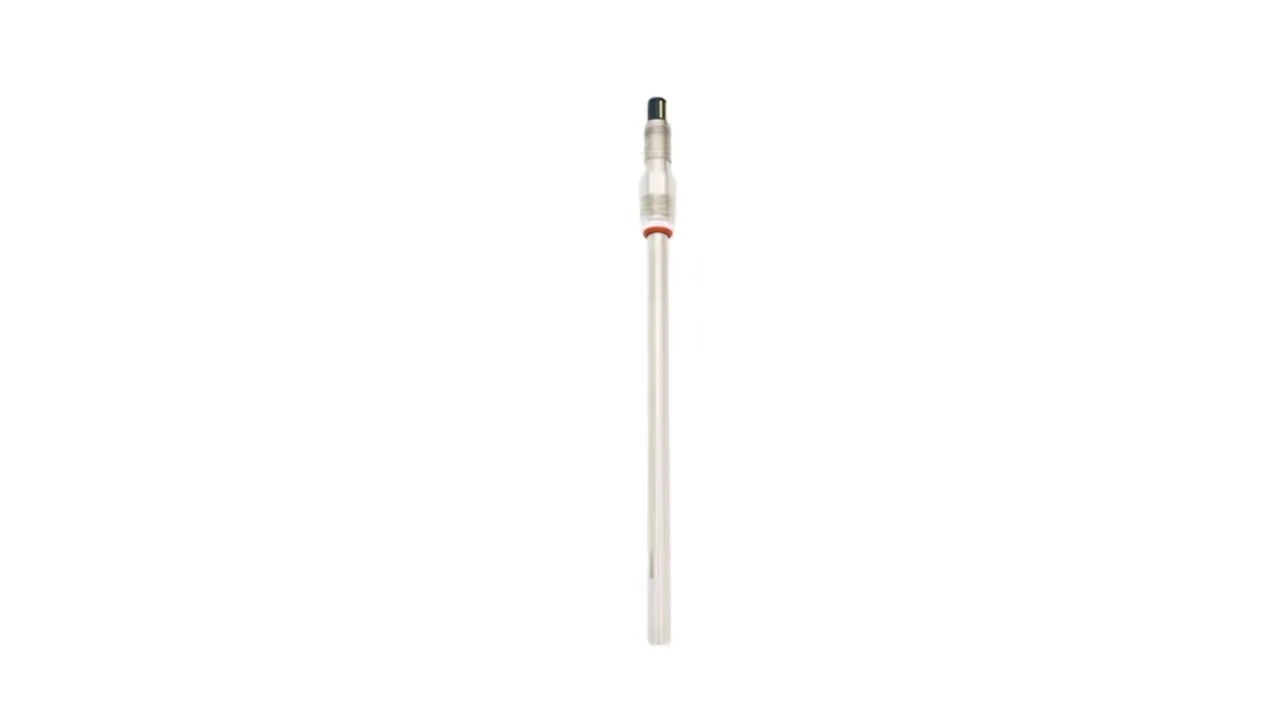

Cleanable DO Sensor AC6800/12/120 12mm Diameter
Place of Origin: Shanghai, china
Purpose: Industry, laboratory, other
Warranty period: one year
Support customization: OEM, ODM
Logo: ACITEK
Model: AC6800/12/120
Type: DO sensor
Equipped with a rechargeable battery: No
Material: 316L stainless steel
A-length: 120mm
Diameter: 12mm
Product parameters
|
Measurement Parameter |
Oxygen |
Measurement Technology |
Amperometric/Polarographic |
|
Accuracy |
± (1 % of the reading + 6 ppb) |
Response Time |
T98 = < 90 s @ 25°C (77°F)(air to N2) |
|
Primary Media/Application |
Pharmaceutical/Life Science Production |
IP Rating |
IP68 |
|
Digital or Analog |
Analog |
Anti-Bubble Design |
No |
|
Wetted Metallic Material |
316L stainless steel |
Surface Roughnes of Wetted Material |
N5/Ra16 (Ra=0.4μm/16μin) |
|
Sensor Diameter |
12mm |
O-Ring Material |
Silicone |
|
Process Connection |
Pg 13.5 |
Sensor Length |
120 mm |
|
Wetted membrane material |
PTFE |
Connector Design |
Straight |
|
Model Family |
AC6800 |
Autoclavable/Sterilizable |
Yes |
|
CIP resistant |
Yes |
Mechanical Temp. Range |
23 °F – 284 °F (-5 °C – 140 °C) |
|
Operating Pressure (Bar) |
0.2–6 Bar |
Operating Pressure (PSI) |
0–87 PSI |
|
Design Pressure |
174 psi (12 bar) |
Analog Integration |
nA Signal |
|
Cable Connector |
VP8 |
Sensor signal in air at 25 °C (77 °F) |
40-110 nA |
|
Detection limit |
6 ppb |
Measurement Range |
0-100% O2 saturation |
|
Sterilizable/Autoclavable |
Yes |
Residual signal in oxygen free media |
<0.1% of signal in ambient air |
|
Measured Pressure Resistance |
0.2 bar – 6 bar |
Measuring Temp. Range |
32 °F – 176 °F (0 °C – 80 °C) |
|
Connection |
VP (IP 68) Pg 13.5 |
Product application
Oxygen Probe for Sterile Conditions: The AC6800 dissolved oxygen sensor with 12 mm diameter body provides maximum accuracy and ultimate cleanability.
Sensor for Hygienic Applications: The sensor has been developed to comply fully with the EHEDG and FDA flat-surface recommendations for extremely high-level hygienic applications.
Durable and Hygienic Design: The 316L stainless steel construction allows for CIP, steam sterilization or autoclaving in place. The sensor finish eliminates process contamination.
Easy to Integrate: The AC6800 DO sensor is easy to integrate into your process. Its watertight VP connector (IP68) helps ensure reliable measurements.
