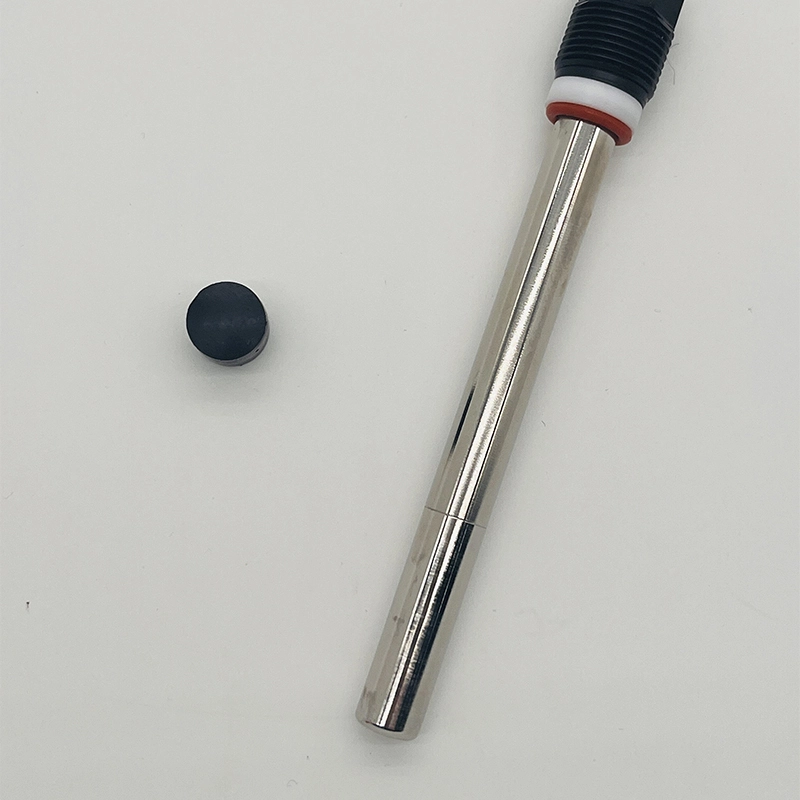

Low-Maintenance DO sensor ACOxysens 120 with Rapid Detection
Sensor Family: ACOxysens
Parameter: DO (Electrochemical)
Sensor Output: (Traditional: nA)
a-length: 120 mm
Electrical Connector: 5 m Fix Cable / Open End
Measurement Principle: Electrochemical reduction of oxygen
Measuring Range :40 ppb to 40 ppm (DO) or 0.8 to 1000 mbar (pO₂)
Product parameters
|
Drift at Room Temperature |
< 1 % per week |
Oxygen Consumption |
Ca. 20 ng/h in air at 25 °C |
|
Temperature Sensor |
NTC 22 kOhm |
Current in Air at 25 °C |
40 - 110 nA |
|
Diameter |
12 mm |
Process Connection |
PG13.5 |
|
Wetted Parts |
Stainless Steel 1.4435 |
Surface Quality of Steel |
Ra < 0.8 µm (N6) |
|
Electrode system |
Silver platinum combination |
Polarization Voltage and Time |
-670 ± 50 mV, ≥ 2 hours |
|
Serial Number |
Yes |
Response Time |
t98% < 60 s at 25 °C |
|
Autoclavable |
No |
CIP |
No |
|
Steam Sterilizable |
No |
Operating Temperature Range |
0 to 60 °C |
|
Pressure Range bar g |
0 to 4 bar |
Max. CO₂ Partial Pressure |
0.01 bar |
|
Required Flow |
≥ 0.03 m/s |
