ACITEK Combined Fluoride Ion-selective electrode AC9609BN

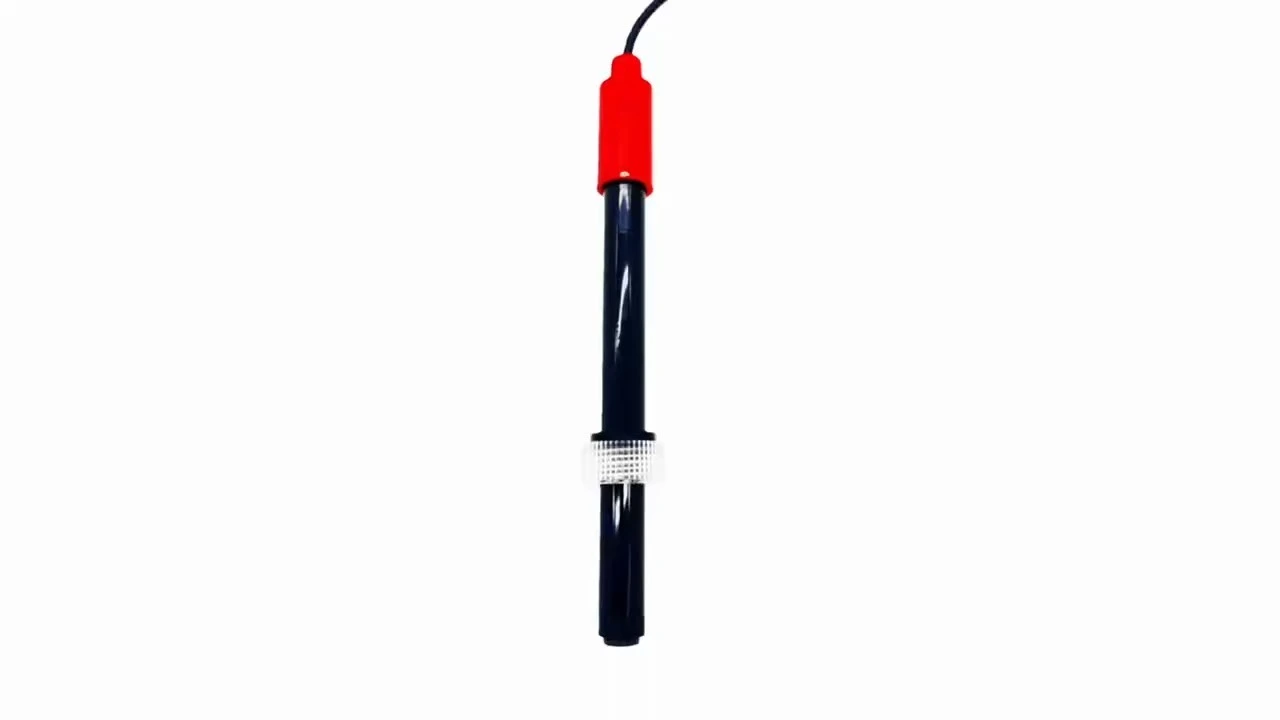

Name: ACITEK Combined Fluoride Ion-selective electrode AC9609BN
Uploaded: 2025-12-29T11:02:09+08:00
Description: Place of Origin: Shanghai, china purpose: Industry, laboratory, other warranty period: one year Support customization: OEM, ODM Logo: ACITEK model:AC9609BN type: ISE sensor equipped with a rechargeable battery: No material: Glass,EPDM Shaft length: 120 mm Shaft Diameter: 12 mm

Place of Origin: Shanghai, china

purpose: Industry, laboratory, other

warranty period: one year

Support customization: OEM, ODM

Logo: ACITEK

model:AC9609BN

type: ISE sensor

equipped with a rechargeable battery: No

material: Glass,EPDM

Shaft length: 120 mm

Shaft Diameter: 12 mm

Shaft length: 120 mm

Inquiry

Write a Review

Product parameters

Technical specification

Measuring range	1*10-6 mol/L – saturated, 0.02 mg/L – saturated
Temperature Range	0 °C – 80 °C
Optimal pH range	5 – 7
Connector	BNC
Type of junction	Ceramic sand core
Shaft Material	Epoxy
Sensor type	Combined electrode
Shaft length	120 mm
Shaft Diameter	12 mm
Cable	1 m
Parameter	ISE
Reference electrolyte	Ion Electrolyte A
Type of membrane	Solid state
Intelligent Sensor Management	No
Temperature probe	No
Signal type	Analog
Ion	Fluoride
Reference electrolyte Order no.	AC51344750
ISA solution	AC51344765
Cable included	Yes
Connector on Sensor	Fixed 1 m cable
Connector to Meter	Flexible
Ion Type	Anion

Product details

Cable：1 m

Connector：BNC

Type of membrane：Solid state

FAQS

How often does it take to calibrate to ensure accurate data?

Calibrate once every three months.

How long is the lifespan of the sensor？

Sensor warranty for six months.

What are the advantages of this ion electrode

The reference system uses silver-ion-free electrolyte. Thereby is no danger of the junction becoming blocked by sulfides or proteins.

How to keep the electrode in the best condition？

Keep the electrode membrane surface clean and respond quickly when in full contact with the sample. Membrane surface contamination or bubbles can hinder ion transfer.

How long does the response time of ion selective electrodes take？

Response time between 30 seconds and 2 minutes.
