Na Half-Cell Reference AC800500U
Place of Origin: Shanghai, china
purpose: Industry, laboratory, other
warranty period: one year
Support customization: OEM, ODM
Logo: ACITEK
model:AC800500U
type: ISE sensor
equipped with a rechargeable battery: No
material: Glass,EPDM
Shaft length: 120 mm
Shaft Diameter: 12 mm
Product Features

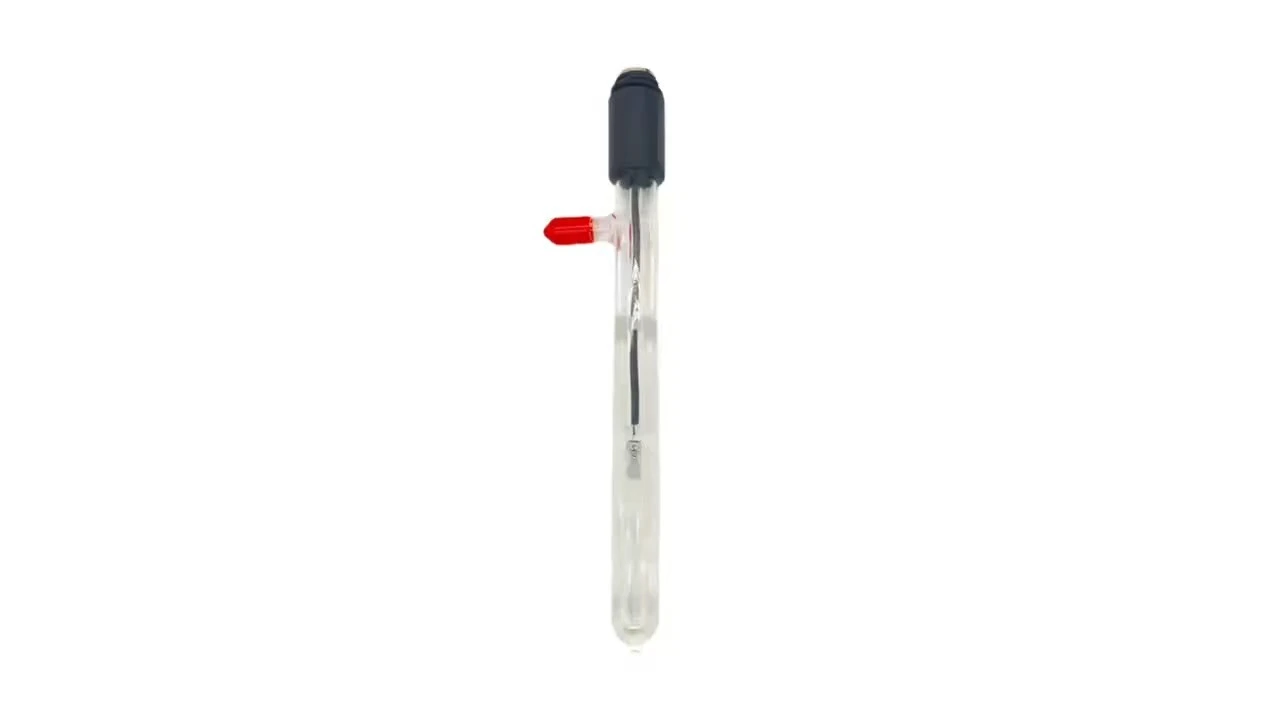

Origin of Precision: A glass-body, reference electrode with S7 screw head.
For a long electrode life: The reference system uses silver-ion-free electrolyte. Thereby is no danger of the junction becoming blocked by sulfides or proteins.
Flexible connectivity: The S7 sensor head offers flexibility and can easily be connected to any meter.
Spill free wetting cap: Easy-to-use wetting cap with a self-tightening screw lock that guarantees clean and secure electrode storage.
Product parameters
|
Temperature Range |
0 °C – 100 °C |
|
Type of junction |
Ceramic |
|
Shaft Material |
Glass |
|
Sensor Type |
Reference electrode |
|
Shaft length |
120 mm |
|
Shaft Diameter |
12 mm |
|
Parameter |
Reference electrode |
|
Reference System |
with Ag+-trap |
|
Reference electrolyte |
3 mol/L KCl |
|
Temperature Probe |
No |
|
Low Maintenance |
Yes |
|
Signal type |
Analog |
|
Sensor Characteristics |
Chemically robust |
|
Sample Volume |
>= 20 mL |
|
Cable Included |
No |
|
Sample Temperature |
0°-100°C |
|
Connector to Meter |
Flexible (detachable cable) |
|
Connector on Sensor |
S7 |
|
Minimum Sample Volume uL |
20 mL |
Product details
