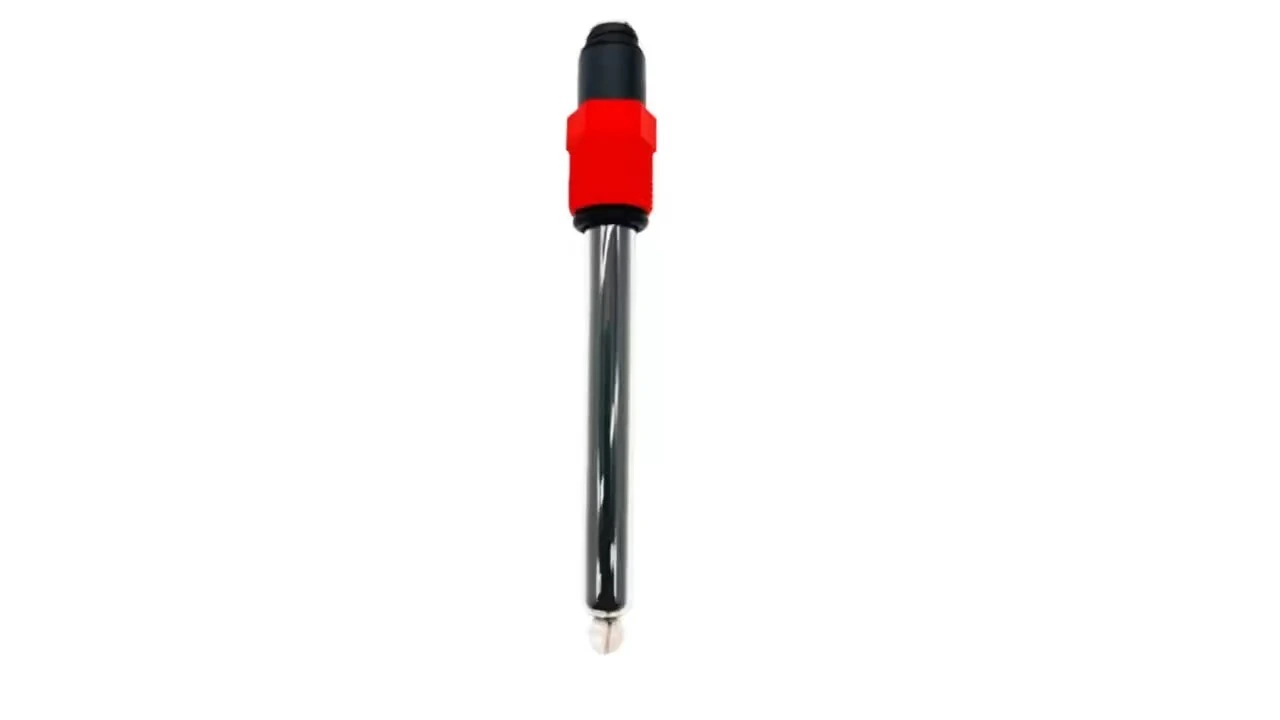

ACITEK ACDX223-Na ISE half-cell electrode AC51340263
Place of Origin: Shanghai, china
purpose: Industry, laboratory, other
warranty period: one year
Support customization: OEM, ODM
Logo: ACITEK
model:AC51340263
type: ISE sensor
equipped with a rechargeable battery: No
material: Glass,EPDM
Shaft length: 120 mm
Shaft Diameter: 12 mm
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product parameters
Technical specification
| Measuring range | 1*10-7 – 1 mol/L, 0.002 – 23000 mg/L; |
| Temperature Range | 0 °C – 80 °C |
| Optimal pH Range | 8 – 11 |
| Connector | S8 |
| Shaft Material | Glass |
| Sensor Type | half-cell electrode |
| Shaft length | 120 mm |
| Shaft Diameter | 12 mm |
| Parameter | ISE |
| Type of Membrane | Na+-Glass |
| Intelligent Sensor Management | No |
| Temperature Probe | No |
| Signal type | Analog |
| Ion | Sodium |
| Cable Included | No |
| Connector on Sensor | S8 |
| Connector to Meter | Flexible (detachable cable) |
| Ion Type | Cation |
Logistical Specifications:
|
Country of origin |
CH |
|
Customs tariff number |
902790 |
Product details
Connector S8
Shaft Material Glass
Shaft Diameter 12 mm
FAQS
1
How to clean this electrode？
Need to thoroughly clean with low concentration standard solution or deionized water.
2
How long is the lifespan of the sensor？
Sensor warranty for six months.
3
How to store this electrode normally？
Glass electrodes should be soaked in storage solution or water when not in use for a long time, and should not be left dry, otherwise the glass film will dehydrate and become ineffective.
