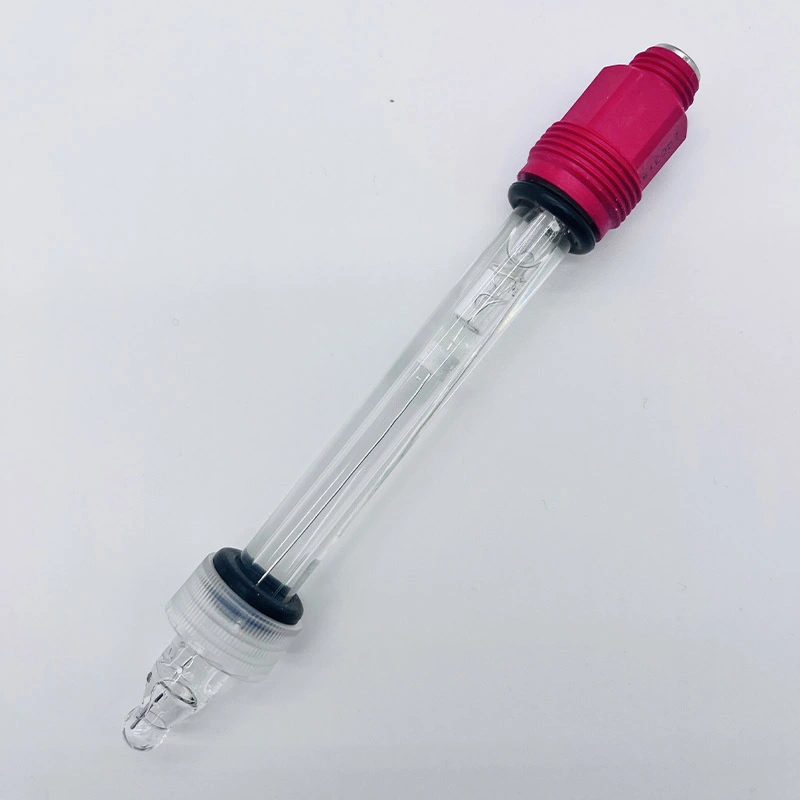

Sterilization-Ready pH Sensor ACFerm Plus S8 120
Place of Origin: Shanghai, china
Purpose: Industry, laboratory, other
Warranty period: one year
Support customization: OEM, ODM
Logo: ACITEK
Model: ACFerm Plus S8 120
Type: pH sensor
Equipped with a rechargeable battery: No
Material: Glass;Ceramic;EPDM
Length (Excludes Cable): 120mm
Diameter (External): 12mm
Product parameters
|
Sensor Family |
ACFerm Plus |
|
Parameter |
pH |
|
a-length |
120 mm |
|
Electrical Connector |
S8 |
|
Measurement Principle |
Combination electrode; pH potential measured |
|
Measuring Range |
pH 0.00 to 14.00 |
|
Sensitivity |
57.0 to 59.0 mV / pH at 25 °C |
|
Zero Point |
0.0 ± 20.0 mV |
pH Glass |
ACITEK Type A41 Glass |
|
pH Glass Resistance |
Moderate |
Membrane Shape |
Spherical |
|
Diaphragm |
HP-Coatramic |
Number of Diaphragms |
1 |
|
Electrolyte |
Pressurized Phermlyte |
Reference System |
ACITEK Everef-F, Silver ion barrier included |
|
Liquid Earth |
No |
Temperature Sensor |
No |
|
Diameter |
12 mm |
Process Connection |
PG13.5 |
|
Wetted Parts |
Glass;Ceramic;EPDM |
O-ring Material |
FDA 21 CFR 177.2600; |
|
Serial Number |
Yes |
Recommended Storage |
ACITEK Storage Solution or 3 M KCl |
|
Autoclavable |
Yes |
CIP |
Yes |
|
Steam Sterilizable |
Yes |
Operating Temperature Range |
0.0 to 140.0 °C |
|
Sample min Conductivity |
50 µS/cm |
Pressure Range bar g |
0 to 6 bar |
Product Introduction
Introducing the pH sensor ACFerm Plus S8 120 - designed for frequent sterilization applications. Ensure precise pH measurement reliability every time. Ideal for industries requiring frequent sanitization.
