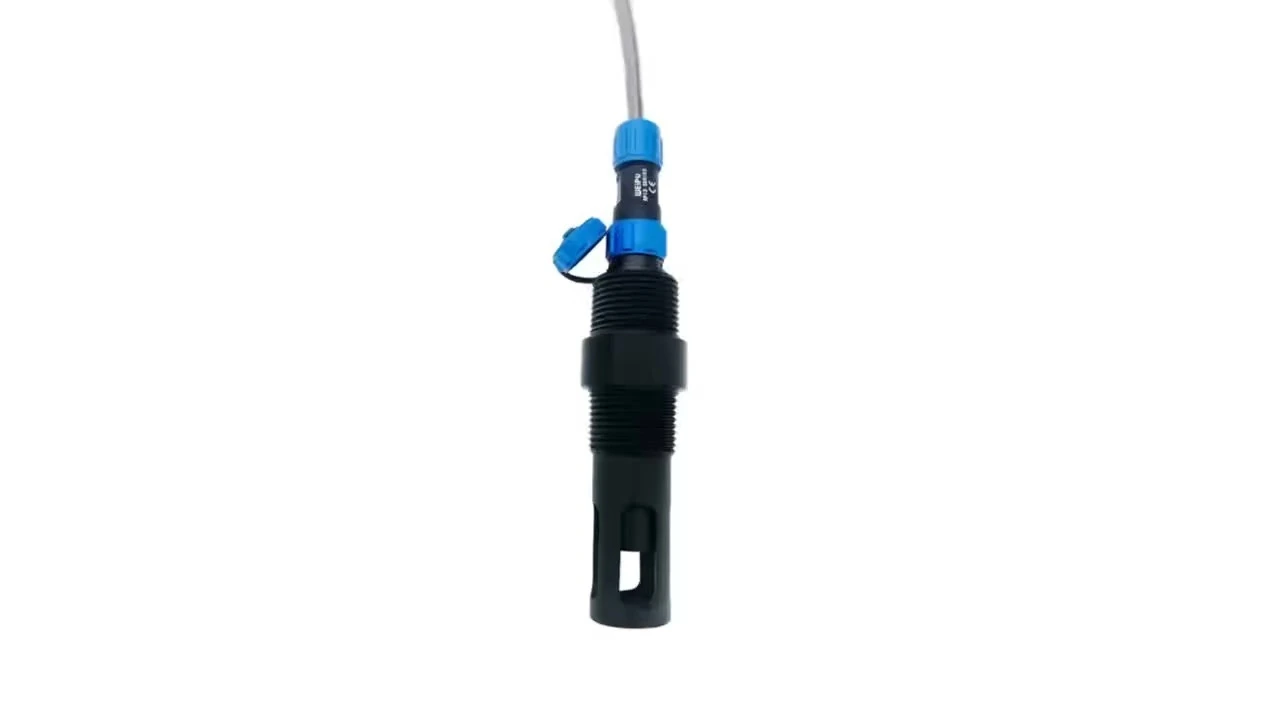

Conductive 4 Electrode Conductivity Sensor AC91346S
Place of Origin: Shanghai，china
Purpose: Industry，laboratory，other
Warranty period: one year
Support customization: OEM，ODM
Logo: ACITEK
Model: AC91346S
Type: conductivity sensor
Equipped with a rechargeable battery: No
Material: SS316 Stainless steel，Ryton®
Length (Excludes Cable): 100.5 mm
Diameter (External): 22.2 mm
Weight:430 g
Product Introduction
The conductivity sensor has 4 electrodes made of robust special graphite and is characterized by a wide measuring range. It is therefore predestined for determining the conductivity of high salt concentrations. This is why it can be used in salt and sea water applications, among others.
Advantages include:
Wide measuring range
Robust and durable sensor material
Product parameters
| Conductivity Range | Up to 500 mS/cm |
| Cell Constant, K | 0.3, 4-cell |
| Temperature Sensor | Pt100, 3-wire；or PT1000； |
| Pressure Rating at 25 ºC | 6 bar (87 psi) |
| Operating Temperature | -5 to 100 ºC / 23 to 212 ºF |
| Material | Ryton®, SS316 |
| Fitting Material | - |
| Thread | ¾” NPT |
| Cable | Integrated 5m 6-wire double-shielded, tinned ends |
| Dimensions: Length | 100.5 mm (excludes cable) |
| Dimensions: Diameter | 22.2 mm (external) |
| Weight | 430 g |
| Application areas | Salt water and sea water applications; slightly contaminated rinsingand purification baths; fertilizer solutions; drinking and well water;general water technology |
Product details
