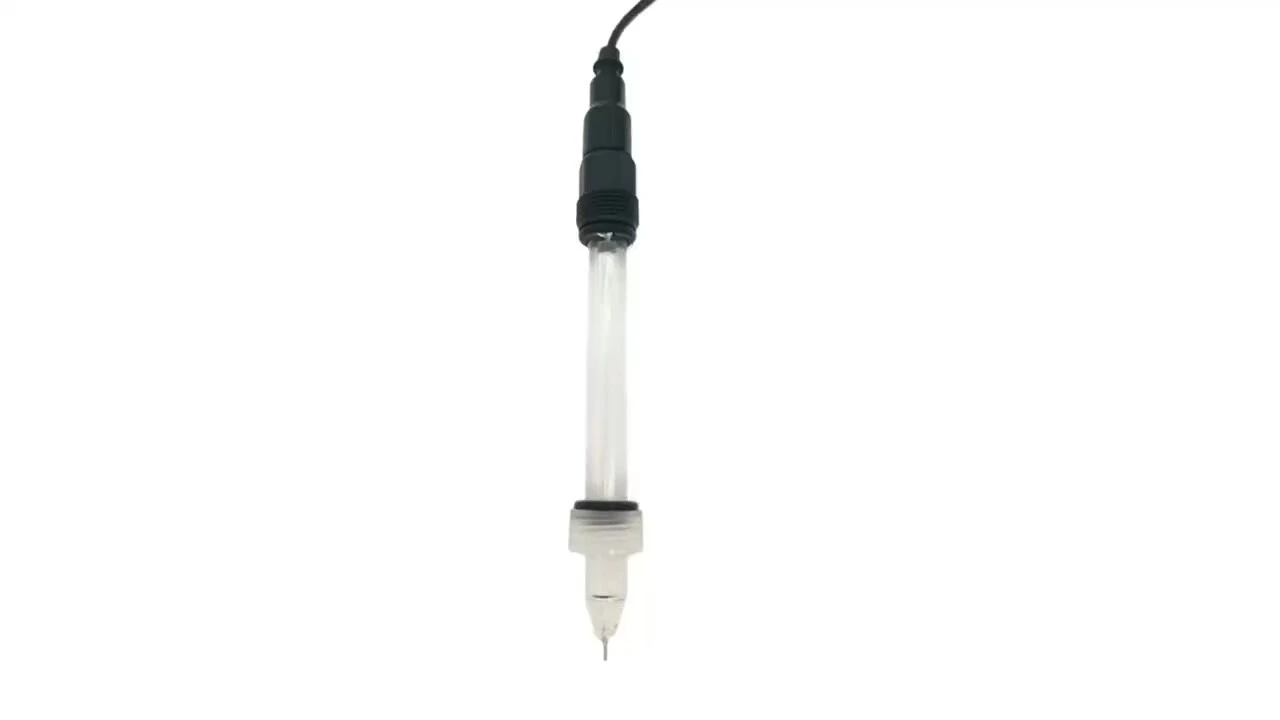

Analog ORP sensor ACCPS12
Place of Origin: Shanghai, china
purpose: Industry, laboratory, other
warranty period: one year
Support customization: OEM, ODM
Logo: ACITEK
model:ACCPS12
type: ORP sensor
equipped with a rechargeable battery: No
material: Glass,EPDM
Diameter: 12 mm
Shaft lengths: 120mm
Product description
Glass electrode for standard applications
Measuring range:-1500 mV to +1500 mV
Process temperature:max. 80°C
Process pressure:max. 4bar
Field of application
Product parameters
|
Measuring principle |
Sensor ORP / Redox |
|
Application |
Standard applications in process and environment. Long-term monitoring, processes with little changes. |
|
Characteristic |
Very robust, heavy-duty / high pressure, integrated potential matching. |
|
Measuring range |
-1500 mV to +1500 mV |
|
Measuring principle |
Gel compact electrode with teflon diaphragm and double gel reference |
|
Measuring part |
platinum-ring. |
|
Design |
Advanced gel technology |
|
Material |
Glass electrode with PTFE diaphragm and platinum ring. |
|
Dimension |
|
|
Diameter |
12 mm (0.46 inch) |
|
Shaft lengths |
120mm |
|
Process temperature |
max. 80°C |
|
Process pressure |
max. 4bar |
|
Connection： |
S8M connection head |
|
Ingress protection： |
IP68 |
