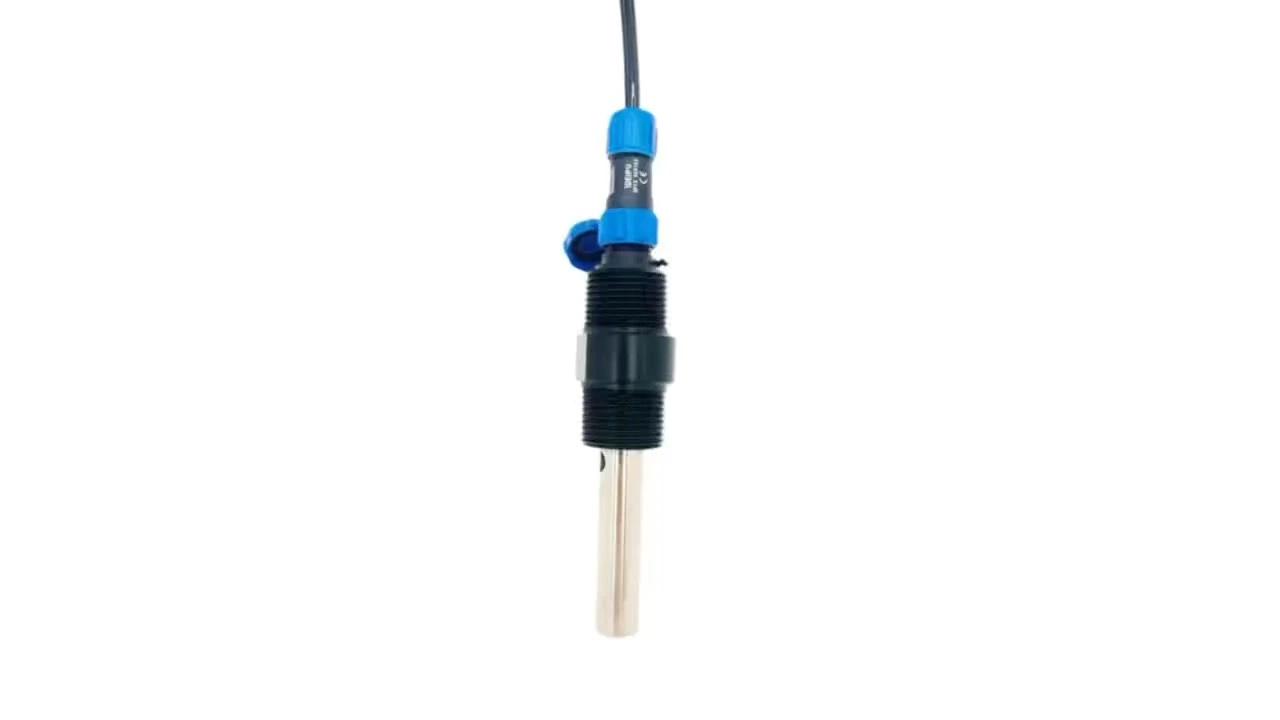

ACITEK Cond Sensor 3/4NPT 0.01C SS 2 AC58031230
Place of Origin: Shanghai，china
Purpose: Industry，laboratory，other
Warranty period: one year
Support customization: OEM，ODM
Logo: ACITEK
Model: AC58031230
Type: conductivity sensor
Equipped with a rechargeable battery: No
Material: SS316 Stainless steel
Insertion length: 40mm
Connection: ¾ inchNPT
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Introduction
This analog conductivity sensor is a 2-electrode sensor. Due to its SS316L concentric electrodes, this sensor is suitable for measurement in ultra-pure and high-purity water.
Product parameters
| Operating Range (µS/cm) |
0.05 – 20 |
| Temperature Sensor |
PT 1000 or PT100 |
| Cell Constant | 0.01 cm-1 |
| Connection | ¾ inchNPT |
| Cable | 5 m |
| Connector | Standard |
| Measurement Technology | Conductive |
| Fitting material | PTFE/SS |
| Insertion length | 40mm |
| Model Family | Analog |
| Hazardous Area Approvals | No |
| Measured Pressure Resistance | 250 psig @ 200 °F (17 bar @ 93 °C) |
| Electrode Material | SS316L |
| Primary Media/Application | Other Industrial Processes Other Water Processes Power Plant Water/Steam Semiconductor Water |
| Hygienic/Biocompatibility Approvals | No |
| Process fitting | ¾" NPTM |
| Cell Constant (accuracy) | ± 1% |
| Electrode Configuration | 2-electrode |
| Measurement Range | 0.055 - 20 µS/cm |
| Sensor Material | PTFE/SS |
Product details
5m cable
¾ inchNPT
SS 316L
FAQS
1
What industries are suitable for ¾ inchNPT conductivity electrode？
Conductivity electrode is a commonly used electrode for conductivity measurement, with a mounting interface of three-quarters inch American standard taper pipe thread (NPT). This interface facilitates the connection of the electrode to pipelines or other equipment and is suitable for various industrial and laboratory scenarios.
2
Can the cable of this conductivity electrode be extended？
This electrode can be customized with the length of the cable according to customer requirements.
3
Is there a relationship between the measurement range of electrodes and electrode constants？
Electrodes with a cell constant k=0.01 typically have a measurement range of 0-200 µS/cm, while those with a cell constant k=1.0 have a measurement range of 0-20 mS/cm.
