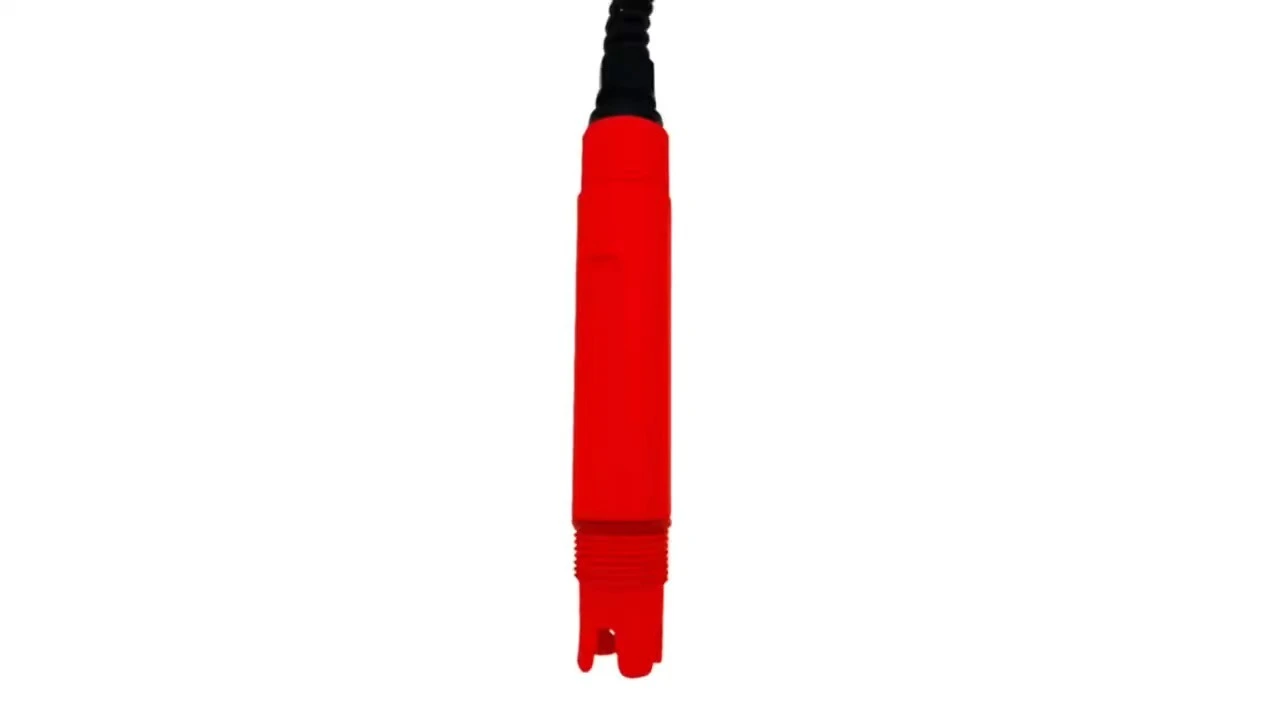

ACITEK MEASUREMENT & ANALYTICS | DATA SHEET ACAP300 Combination pH sensor
Place of Origin: Shanghai, china
purpose: Industry, laboratory, other
warranty period: one year
Support customization: OEM, ODM
Logo: ACITEK
model:ACAP300
type: pH sensor
equipped with a rechargeable battery: No
material: Glass,PTFE，PVDF，PVC
Temperature compensator (pH sensors only):Integral Pt100 or pt1000
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Introduction
General-purpose insertion, flow-through, immersion, 3/4 in. NPT threaded sensors.
The ACAP303 are constructed from PVDF (Kynar) and can be used in insertion, flow-through or immersion (dip) applications.
ACAP303 models have a notched sensor guard to protect the bulb glass.
Product advantages
Long life:
• large PTFE junction provides resistance to fouling;
• double junction with gelled electrolyte provides better-defined junction potentials, creating an inherently-stable reference junction that is resistant to poisoning;
High accuracy:
• specially formulated, low sodium-error glass for accuracy at high pH;
• temperature sensor positioned perfectly to compensate for measurement and reference element temperature, ensuring rapid compensation and process temperature tracking；
High reliability：
• operates up to 105 °C (221 °F) and 6 bar (90 psi) @ 25 °C (77 °F)；
• fouling-resistant flat glass available；
High flexibility：
• suitable for a wide range of applications；
• available for insertion, immersion, flow-through and hot-tap；
• standard- and blue-glass options；
• bulb and flat-glass options；
Economical：
• cost-effective；
• long life；
• highly reliable；
Product parameters
Technical specification
| General： | |
| pH measuring range | Standard (yellow glass) 0 to 14 pH |
| Temperature range | Body 0 to 105 °C (32 to 221 °F) |
| Bulb glass 0 to 105 °C (32 to 221 °F) | |
| Flat glass 5 to 100 °C (41 to 212 °F) | |
| Pressure maximum | 6 bar (90 psi) @ 25 °C (77 °F) |
| Temperature compensator (pH sensors only) | Integral Pt100 or pt1000 |
| Wetted materials： | |
| pH electrode | Glass |
| Junction | PTFE |
| Body | PVDF |
| Flow cell | PVC |
| Immersion guard | PVC |
| pH glass types： | Bulb general duties； |
| Flat in-line, self-cleaning； | |
| Blue low temperature； | |
| Reference system | Ag/AgCl-3.5M KCl in gel matrix |
Reference junction |
Porous PTFE |
Product details
Customizable cable
have a notched sensor guard to protect the bulb glass
PTFE junction
FAQS
1
Can cable length be customized？
Cable wires can be of different lengths.
2
How long is the lifespan of the sensor？
Sensor warranty for six months.
3
What are the advantages of PVDF material electrode casing？
Advantages include corrosion resistance, high temperature resistance, high mechanical strength, and good insulation.
4
What are the advantages of using PTFE joints for electrodes？
Advantages include corrosion resistance, resistance to strong acids and alkalis, resistance to organic solvents, low friction coefficient, and high sealing performance.
