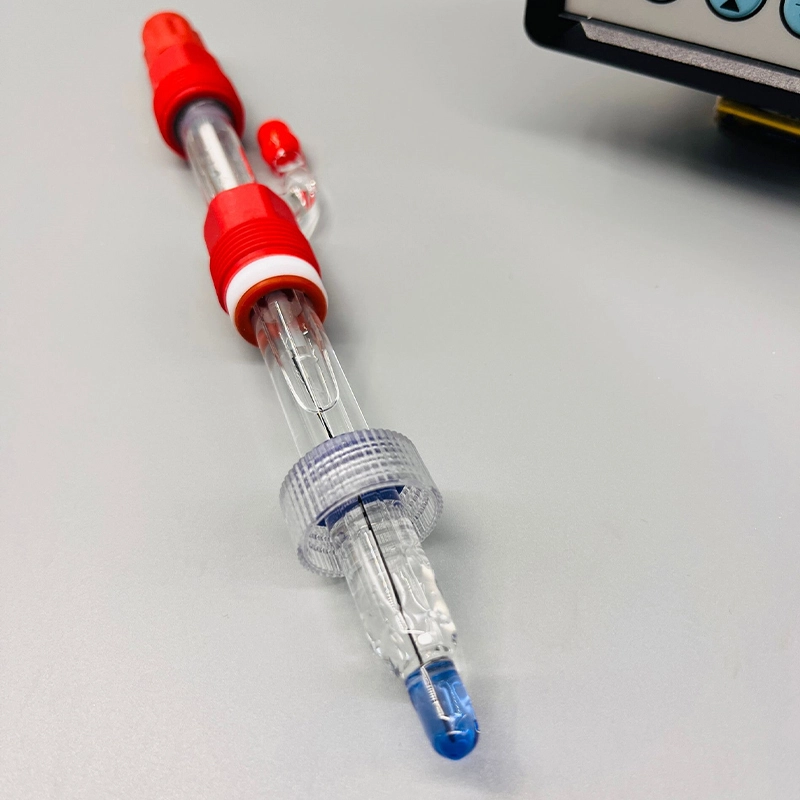

pH sensor ACpHPURE （it well suited for high purity water measurement）
Place of Origin: Shanghai, china
Purpose: Industry, laboratory, other
Warranty period: one year
Support customization: OEM, ODM
Logo: ACITEK
Model: ACpHPURE
Type: pH sensor
Equipped with a rechargeable battery: No
Material: Glass,EPDM
Length (Excludes Cable): 120mm
Diameter (External): 12mm
Product parameters
|
Sensor Family |
ACpHPURE |
|
Sensor Output |
Traditional: mV |
|
a-length |
120mm |
|
Parameter |
pH |
|
Electrical Connector |
S7 |
|
Measurement Principle |
Combination electrode; pH potential measured against reference |
|
Measuring Range |
pH 0.00 to 14.00 |
|
Sensitivity |
57.0 to 59.2 mV / pH at 25 °C |
Zero Point |
0.0 ± 20.0mV |
|
pH Glass |
ACITEK Type F Glass |
pH Glass Resistance |
Low |
|
Membrane Shape |
Spherical |
Diaphragm |
ceramics |
|
Electrolyte |
3M KCl |
Reference System |
ACITEK Everef |
|
Liquid Earth |
No |
Temperature Sensor |
No |
|
Diameter |
12mm |
Wetted Parts |
Glass;EPDM |
|
Serial Number |
Yes |
Recommended Storage |
ACITEK Storage Solution or 3 M KCl |
|
Certificate |
No |
CIP |
No |
|
Steam Sterilizable |
No |
Operating Temperature Range |
0.0 to 80.0 °C |
|
Sample min Conductivity |
0.2 µS/cm |
Pressure Range bar g |
0 to 0.5 bar (higher if side-arm is pressurized) |
Product Introduction
The ACpHPURE pH sensor offers many unique features that make it well suited for high purity water measurement. The electrolyte can easily be added through the side-arm port or connected to an external storage container with 3M KCl solution.
The F glass membrane has very low resistance which effectively reduces signal noise in low conductivity water. Finally the electrolyte flowrate from the sensor is easily regulated through a precision diaphragm which can easily be adjusted and cleaned in the event of clogging.
