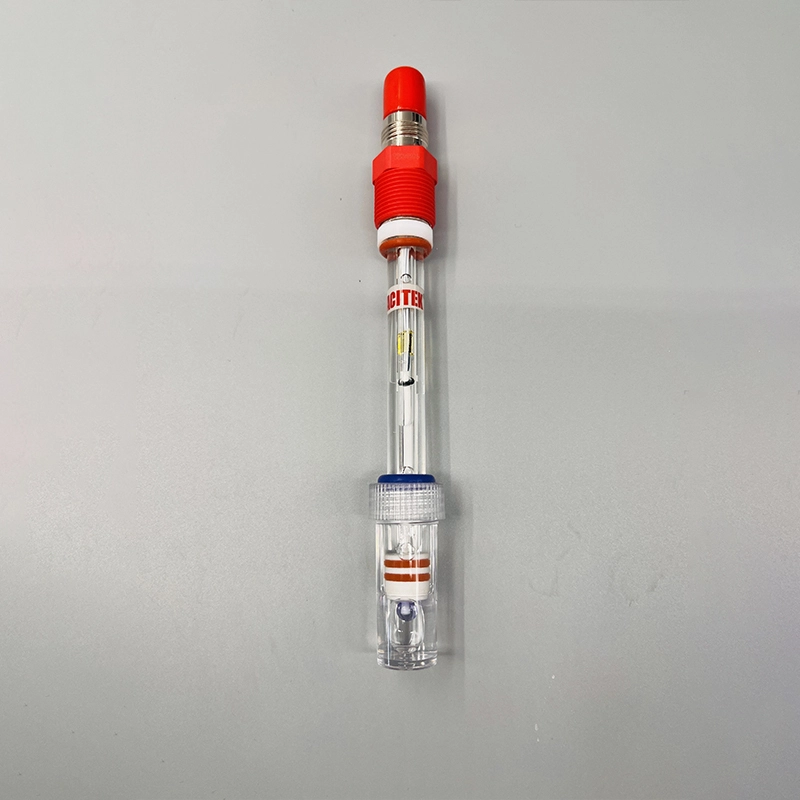

pH sensor ACCPS11 （Glass electrode for standard applications）

Place of Origin: Shanghai, china

Purpose: Industry, laboratory, other

Warranty period: one year

Support customization: OEM, ODM

Logo: ACITEK

Model: ACCPS11

Type: pH sensor

Equipped with a rechargeable battery: No

Material: Glass / PTFE

Length (Excludes Cable): 120mm

Diameter (External): 12mm

Inquiry

Write a Review

Product parameters

Measuring principle	Potentiometric	Measuring range	pH 0.00-14.00
Measuring principle	Gel compact electrode with PTFE ring-diaphragm	Measuring range	pH 0.00-14.00
Process temperature	max. 100°C	Process pressure	max. 4 bar
Material	Glass / PTFE	Dimension	12 mm (0.46 inch)
shaft length	120, 225, 360 and 425 mm(4.68, 8.77, 14.04 and 16,57 inch)	Process temperature	max. 100°C
Process pressure	max. 4 bar	Temperature sensor	optional with integrated Pt100 or Pt1000
Ex certification	Simple operational equipment, no certification necessary	Connection	VP8 connection head
Application	Standard applications in process and the environment. Long-term monitoring, processes with little change	Characteristic	Very robust, heavy-duty version / high pressure, integrated potential matching, flat membrane available

application

ACCPS11 is the all-rounder for pH measurement in process and environmental applications. It performs reliably and accurately even in highly alkaline media or hazardous areas. Designed for low maintenance and a long operating life, the sensor offers you best value for money.

Long-term monitoring and limit monitoring of processes with stable process conditions:
- Chemical industry
- Pulp & paper industry
- Power plants (e.g. flue gas washers, boiler feed water)
- Incineration plants

Water treatment:
- Drinking water
- Cooling water
- Well water

Benefits

Robust electrode with long poison diffusion path, requires low maintenance due to large, dirt-repellent PTFE ring diaphragm;Suitable for harsh applications: Process glass for highly alkaline media and pressure-stable up to 4 bar;Optional salt ring for low conductivity applications such as boiler feed water and water for injection.

Design:

- all shaft lengths with temperature sensor
- advanced gel technology.
- With dirt-repellent PTFE diaphragm.
