pH sensor AC4800/120/PT1000 （pH sensor designed for harsh environments） 1

pH sensor AC4800/120/PT1000 （pH sensor designed for harsh environments） 2

pH sensor AC4800/120/PT1000 （pH sensor designed for harsh environments） 3

pH sensor AC4800/120/PT1000 （pH sensor designed for harsh environments） 4

pH sensor AC4800/120/PT1000 （pH sensor designed for harsh environments） 5

pH sensor AC4800/120/PT1000 （pH sensor designed for harsh environments） 6

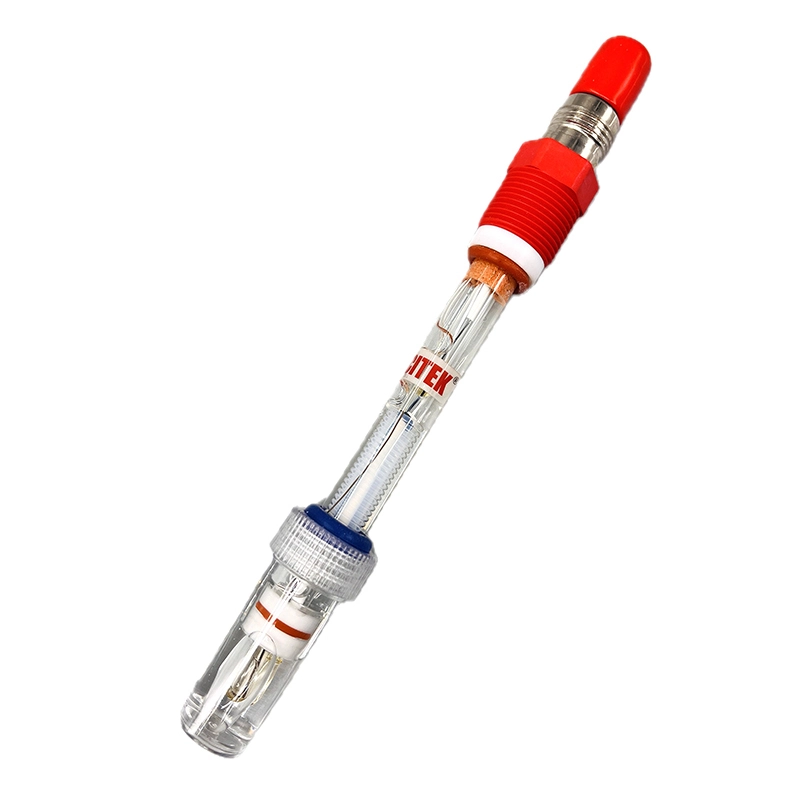

pH sensor AC4800/120/PT1000 （pH sensor designed for harsh environments）

Place of Origin: Shanghai, china

Purpose: Industry, laboratory, other

Warranty period: one year

Support customization: OEM, ODM

Logo: ACITEK

Model: AC4800/120/PT1000

Type: pH sensor

Equipped with a rechargeable battery: No

Material: Glass

Length (Excludes Cable): 120mm

Diameter (External): 12mm

Inquiry

Write a Review

Product parameters

Digital or Analog	Analog	pH Sensing Technology	Highly Alkali Resistant Glass Membrane for Tough Conditions (HA)
pH Range	0.00 – 14.00	Reference System	Gel electrolyte, PTFE annular diaphragm, pressure compensated double chamber Ag/AgCl system
Operating Temperature (Fahrenheit)	23 °F - 266 °F	Operating Temperature (Celsius)	-5.0 °C - 130.0 °C
Cable Connector	VP	Process Connection	Pg 13.5 Thread
Sterilizable/Autoclavable	No	Sensor Length	120 mm
Operating Pressure (Bar)	0 to 12 barg @ 130 °C	Model Family	AC4800
Temperature Sensor	PT 1000;PT100；optional	Measurement Parameter	pH
Shaft Material	Glass	Operating Pressure (PSI)	0 to 174 psig @ 266 °F
Refillable Electrolyte	No	Hazardous Area Approvals	Yes
Primary Media/Application	Chemical Processes	Hygienic/Biocompatibility Approvals	No

Product Introduction

● pH Measurement in Harsh Environments: The AC4800 is a pH sensor designed for harsh environments. It offers a strong resistance to oxidizing media, solvents, and highly acidic or alkali solutions.

● Performance in Harsh Conditions: This pH sensor is designed to perform accurately in demanding industrial environments, at high temperatures, and under high pressure.

● Reduce Maintenance Costs:The PTFE annular junction, long diffusion path, and double electrolyte chamber combine to reduce cleaning and maintenance needs.

● Resistant to Poisoning Substances:The advanced reference system of this pH sensor ensures stability and resistance to harsh processes containing aggressive or sticky agents.
