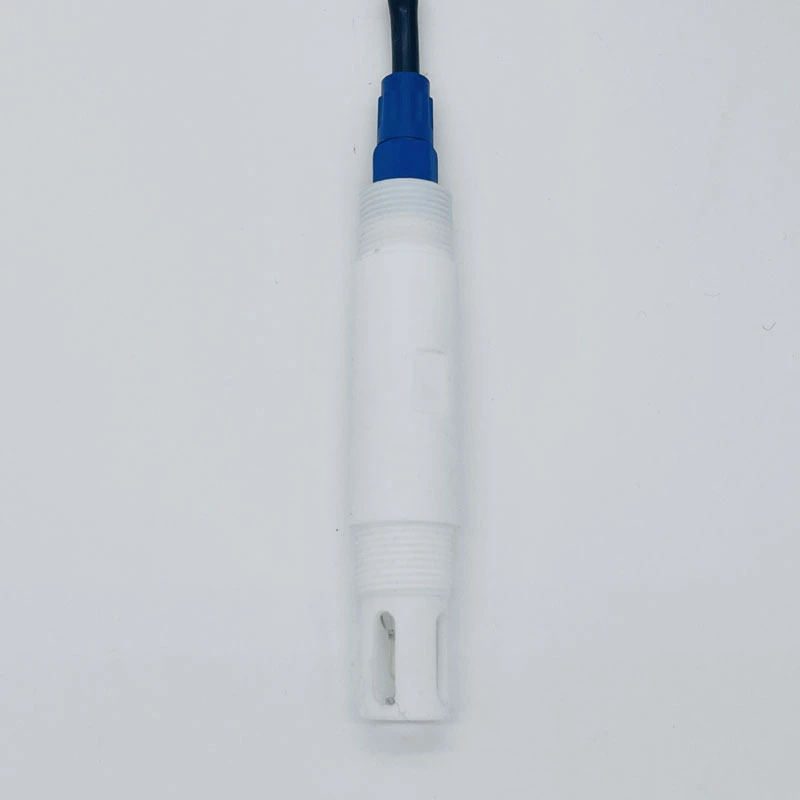

pH Sensor AC4501/1000/10m Designed to Harsh Chemical Industrial Wastewater
Place of Origin: Shanghai, china
Purpose: Industry, laboratory, other
Warranty period: one year
Support customization: OEM, ODM
Logo: ACITEK
Model: AC4501/1000/10m
Type: pH sensor
Equipped with a rechargeable battery: No
Material: PTFE
Dimensions( Length): 120mm
Product parameters
|
Digital or Analog |
Analog |
pH Sensing Technology |
Glass Membrane Suitable For Low Temperatures (LoT) |
|
pH Range |
0.00 – 14.00 |
Reference System |
polymer electrolyte, open double junction, cartridge with silver-ion trap |
|
Operating Temperature (Fahrenheit) |
32 °F - 212 °F |
Operating Temperature (Celsius) |
0.0 °C - 100.0 °C |
|
Cable Connector |
Fixed cable 10 m |
Process Connection |
3/4 inch NPT |
|
Sterilizable/Autoclavable |
No |
Sensor Length |
120 mm |
|
Operating Pressure (Bar) |
0 to 6 barg @ 65 °C |
Model Family |
AC4500 |
|
Temperature Sensor |
PT1000 |
Measurement Parameter |
pH |
|
Shaft Material |
PTFE |
Operating Pressure (PSI) |
0 to 87 psig @ 149 °F |
|
Solution Ground/Redox Metal |
No |
Refillable Electrolyte |
No |
|
Hazardous Area Approvals |
Yes |
Primary Media/Application |
Chemical Processes |
|
Hygienic/Biocompatibility Approvals |
No |
Product characteristics
Rugged, Direct-Integration pH Probe: The AC4501 is a rugged, low-maintenance pH sensor featuring a temperature sensor, and a durable PTFE polymer body. It is designed to handle harsh chemical processes and industrial wastewater applications.
Protected Against Breaking: The glass membrane of the AC4501 is protected by the PTFE body against breaking and is self-cleaning in flowing applications.
Eliminates Clogging & Resists Poisons: An open junction and polymer reference system provides resistance to poisoning, solvents, and strong acid or alkali conditions.
Accuracy at Low Temperatures: The AC4501 uses a special low-temperature glass that provides reliable pH measurement at low process temperatures.
