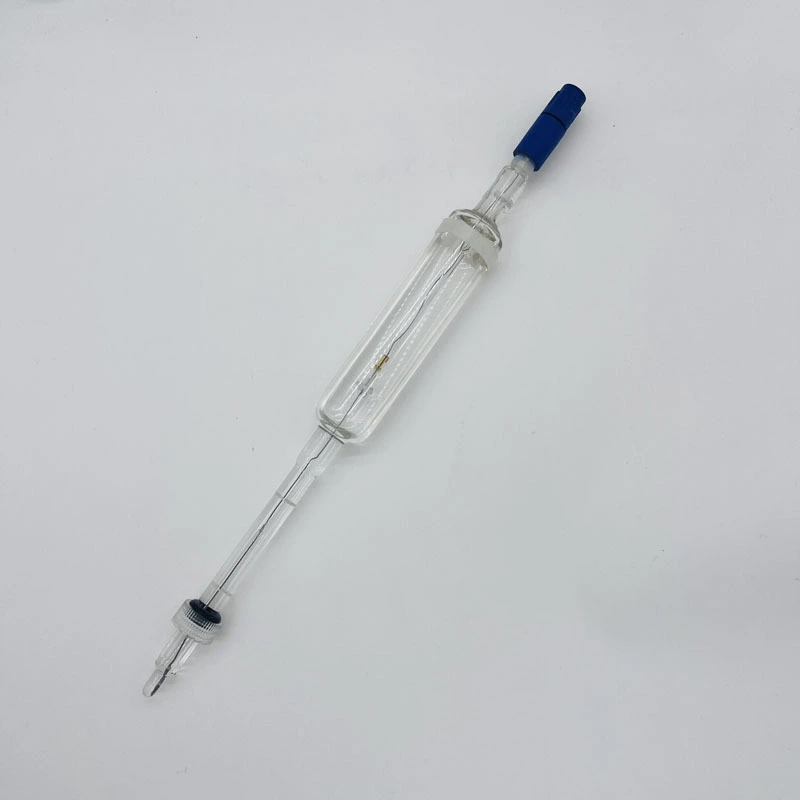

AC2000120 pH Sensor For Chemical And Pharmaceutical Industries
Place of Origin: Shanghai, china
Purpose: Industry, laboratory, other
Warranty period: one year
Support customization: OEM, ODM
Logo: ACITEK
Model: AC2000/120
Type: pH sensor
Equipped with a rechargeable battery: No
Material: Glass, Ceramic
Dimensions( Length): 120mm
Diameter (External): Shaft Diameter Below 12mm
Product parameters
|
Sensor Family |
AC2000 |
|
Parameter |
pH |
|
Sensor Output |
Traditional: mV |
|
a-length |
120 mm |
|
Electrical Connector |
S7 |
|
Measurement Principle |
Combination electrode; pH potential measured against reference |
|
Measuring Range |
pH 0.00 to 14.00 |
|
Sensitivity |
57 to 59 mV / pH at 25 °C |
Zero Point |
0 ± 20 mV |
|
pH Glass |
Acitek Type A41 Glass |
pH Glass Resistance |
Moderate |
|
Membrane Shape |
Spherical |
Diaphragm |
HP-Ceramic |
|
Number of Diaphragms |
1 |
Electrolyte |
Viscous 3 M KCl-LR |
|
Reference System |
Acitek Everef-F, Silver ion barrier included |
Liquid Earth |
No |
|
Temperature Sensor |
No |
Diameter |
30 mm |
|
Wetted Parts |
Glass；Ceramic |
Serial Number |
Yes |
|
Recommended Storage |
Acitek Storage Solution or 3 M KCl |
Certificate |
Yes, with measured values in Buffer pH 4.01 and pH 7.00 |
|
Autoclavable |
No |
CIP |
Yes |
|
Steam Sterilizable |
Yes |
Operating Temperature Range |
0.0 to 130.0 °C |
|
Sample min Conductivity |
50 µS/cm |
Pressure Range bar g |
0 to 6 bar |
|
Shaft Diameter Below |
12 mm |
Product Introduction
The AC2000/120 is the most robust 120mm refillable pH sensor for demanding applications in the chemical and pharmaceutical industries. Robust design, refillable port, ACEveref-F cartridge for reliability.
The ACEveref-F reference cartridge ensures that the reference electrolyte remains free of silver and precipitation of proteins, while the liquid electrolyte can be easily refilled and pressurized up to 6 bar through a port in the sensor for easy maintenance. Refillable liquid electrolyte ensures fast response times and high precision during measurements.
