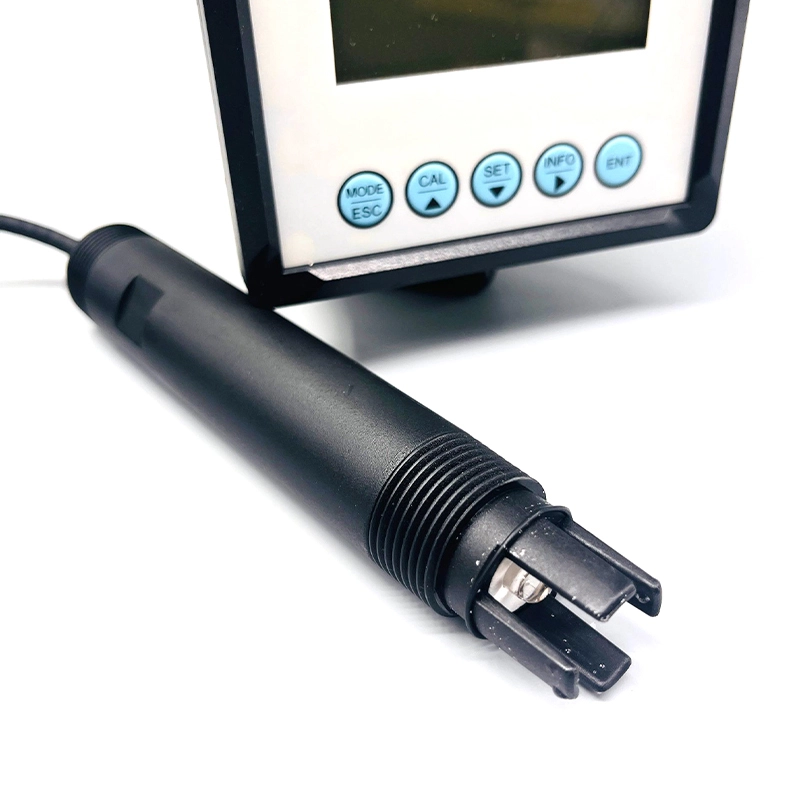

High-Accuracy Online pH Sensor AC100GTSO05B

Place of Origin: Shanghai, china

Purpose: Industry, laboratory, other

Warranty period: one year

Support customization: OEM, ODM

Logo: ACITEK

Model: AC100GTSO05B

Type: pH sensor

Equipped with a rechargeable battery: No

Material: Annular PTFE

Length (Excludes Cable): 151mm

Diameter (External): 26mm

Weight: 650g

Inquiry

Write a Review

Product parameters

Classification	pH	pH Range	0.00 to 14.00
Reference	Annular PTFE, double junction	Reference Electrolyte	Saturated KCl, polymerized gel
Operating Temperature	0.0 to 80.0 °C / 32 to 176 ºF	Pressure Tolerance	6 bars (87 psi)
Temperature Sensor	Pt 100; Pt1000; 30K; 10K; optional	Potential Matching Pin / Liquid Ground	Platinum
Material	PPS (Ryton®)	Thread	¾” NPT
Cable	Integral 5 m (16.4 ft) low-noise semi-conductor screened	Connector	BNC; bare wire
Dimensions: Length (Excludes Cable)	151 mm	Dimensions: Diameter (External)	26 mm
Weight	650 g

Product Introduction

Introducing the pH sensor ACFG7451901B, specially designed for precise measurement in photographic chemicals. Ensure accurate results for your developing process with this reliable and efficient sensor.
