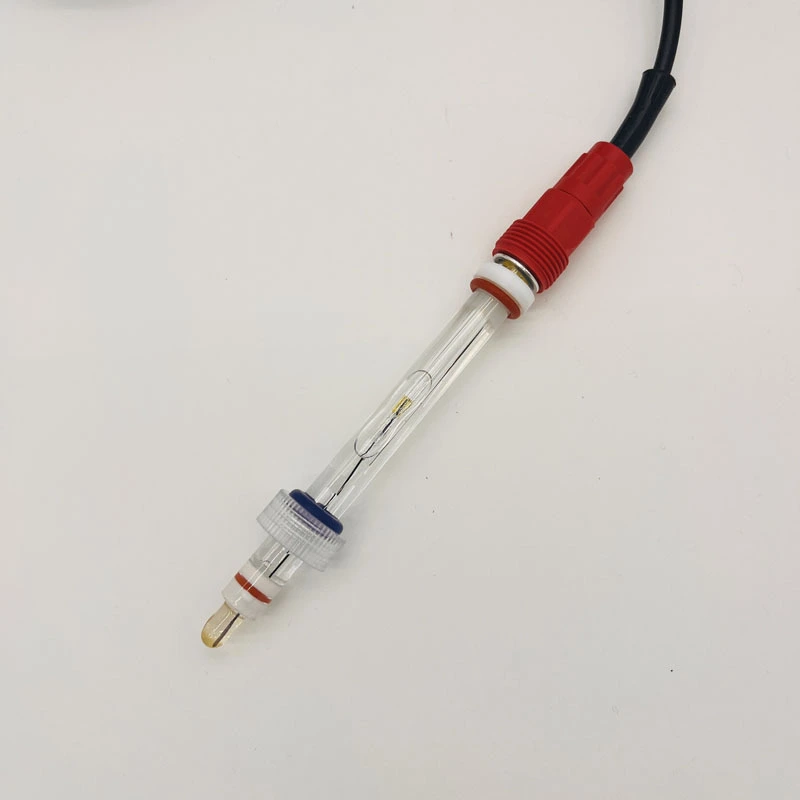

High-Temperature Alkaline Resistant pH Combination Electrode ACEGA193-K050-F-P
Place of Origin: Shanghai, china
Purpose: Industry, laboratory, other
Warranty period: one year
Support customization: OEM, ODM
Logo: ACITEK
Model: ACEGA193-K050-F-P
Type: pH sensor
Equipped with a rechargeable battery: No
Material: Glass
Dimensions( Length): 120mm
Diameter (External): 12mm
Product parameters
|
Electrode shaft |
glass, Ø 12 mm |
Immersion length |
120 mm; |
|
pH range |
0.00…14.00 |
Temperature range |
-5…80 °C |
|
Membrane shape |
cylinder |
Membrane resistance |
≤ 500 MΩ (25 °C) |
|
Reference system |
Ag/AgCl |
Electrolyte |
gel-filled (about 3 M KCl) |
|
Diaphragm |
1 ring shaped shaped PTFE junction |
Isopotential point |
7.00 ± 0.30 |
|
Pressure |
< 4bar |
Electrical connection |
▪S8M coaxial plug head with thread PG 13.5; |
|
Process connection |
▪with the relevant configuration thread PG 13.5at sensor head for direct mounting in housings; ▪installation vertically or laterally up to 30° from vertical; |
Product characteristics
This low maintenance pH combination electrode with gel electrolyte and large-sized ring shaped PTFE junction features application under industrial conditions in water technology, sewage treatment, electroplating and process chemistry.
In addition to the version with plug head system and separated cable connection, models with fixed cable are available.
The model ACEGC193-K050-F-P with alkaline resistant high temperature glass (HT) features application for continuous measurement in mediums with higher temperature and extreme pH.
