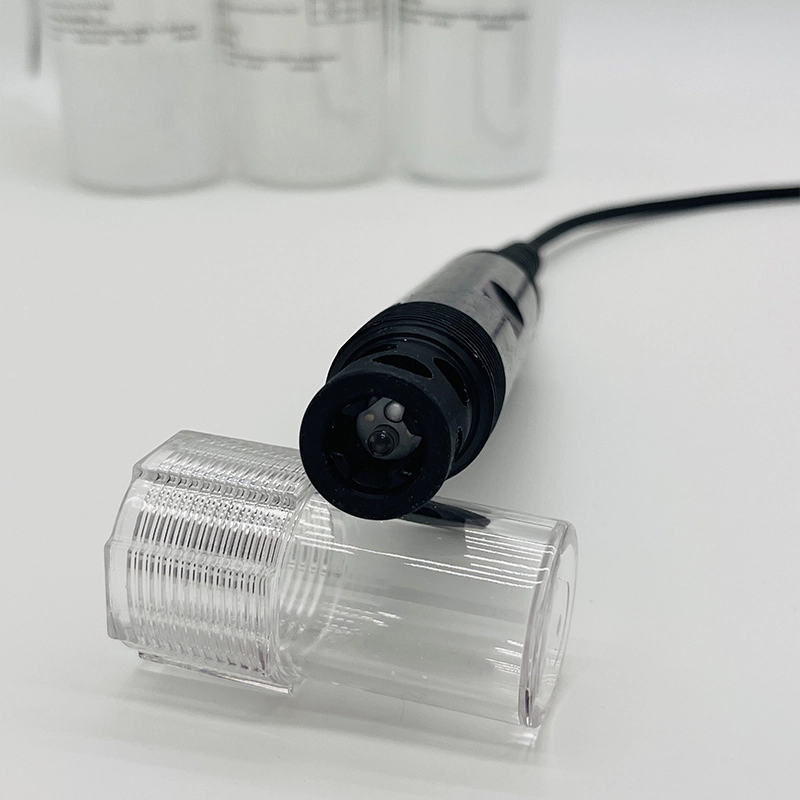

Digital pH Sensor for Drinking Water and Pools ACCPS31D
Place of Origin: Shanghai, china
Purpose: Industry, laboratory, other
Warranty period: one year
Support customization: OEM, ODM
Logo: ACITEK
Model: ACCPS31D
Type: pH sensor
Equipped with a rechargeable battery: No
Material: Glass
Diameter (External): 26mm
Product parameters
|
Measuring principle |
Potentiometric |
|
Characteristic |
Digital pH electrode for standard applications in drinking water and swimming pool water |
|
Measuring range |
pH 0.00 to 14.00 |
|
Measuring principle |
Gel filled reference with one or three ceramic junctions with optional salt storage |
|
Design |
All shaft lengths with temperature sensor |
|
Material |
Sensor shaft: PPS to suit process; |
|
Dimension |
Diameter: 26 mm |
|
Process temperature |
0.0 to 60.0 °C |
|
Process pressure |
0.0 to 2 bar (absolute) |
|
Temperature sensor |
NTC or PT |
|
Connection |
3/4 NPT |
|
Ingress protection |
IP68 |
Product Introduction
Field of application: ACCPS31D is the expert for pH compensation in disinfection processes. It delivers stable measurement results, ensuring safe swimming pool and drinking water. Thanks to digital technology, ACCPS31D provides the perfect data basis for predictive maintenance, offers easy operation and more process uptime since it can be calibrated in the laboratory and quickly exchanged on site. The sensor resists moisture and its 2 optional junctions make it suitable for minimum conductivity.
Applicable environment:
● Drinking water
● Swimming pool water
● pH compensation for free chlorine and free bromine measurement
Benefits
● Reliable: Ceramic junction ensures reliable measurement at low conductivities. For minimum conductivities, 3 junctions are the best choice.
● Robust: The optional salt storage provides for extended operating time.
● Precise: The sensor shows minimum drift thanks to a very low level of ion depletion in electrolyte.
● ACITEK 1.0 offers extended storage of calibration and process data. These data are the ideal basis for predictive maintenance and can also be used to develop and provide enhanced IIoT services.
● Cost-efficient: Fast sensor exchange in the field increases process uptime and regeneration extends the sensor lifetime.
Product details
