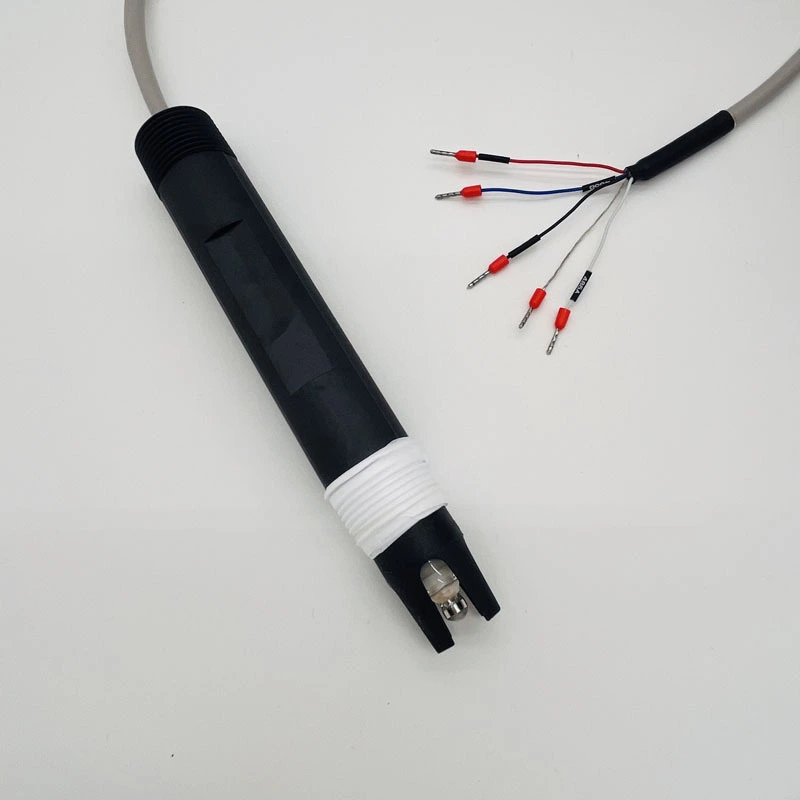

ACCPF82D Digital ORP Sensor For Wastewater ,Mining ,Minerals ,Metal Industries
Place of Origin: Shanghai, china
purpose: Industry, laboratory, other
Warranty period: one year
Support customization: OEM, ODM
Logo: ACITEK
Model: ACCPF82D
Type: ORP sensor
equipped with a rechargeable battery: No
material: PPS, platinum ring
Length (Excludes Cable): 150mm
Diameter (External): 22mm
Product parameters
|
Measuring principle |
Sensor ORP / Redox |
Application |
Flotation, leaching, neutralization, outlet monitoring |
|
Characteristic |
Resistent against electrolyte poisoning and dirt repellent gel-electrode including process connection NPT 3/4" |
Measuring range |
-1500mV to +1500mV |
|
Measuring principle |
Gel-compact electrode with double chamber reference system, potassium nitrate bridge electrolyte and PTFE-diaphragm, platinum ring； |
Design |
Compact electrode in PPS housing with NPT3/4" process connection |
|
Material |
Housing-PPS |
Dimension |
Diameter-22 mm (0.87 inch) |
|
Process temperature |
0 to 80 °C (32 to 170 °F) |
Process pressure |
1 to 10 bar abs at 80 °C(15 to 145 psi abs at 176 °F) |
|
Temperature sensor |
No |
Connection |
Process connection NPT 3/4" |
|
Ingress protection |
IP 68 |
|
Product application
Digital ACCPF82D is the digital, robust solution for ORP measurement in harsh environments. Its large, dirt-repellent PTFE junction guarantees low maintenance while its integrated assembly offers easy and compact installation.
Thanks to Digital 1.0 technology, ACCPF82D combines maximum process integrity with simple operation. It resists moisture, enables lab calibration and offers extended storage of calibration and process data providing the perfect basis for predictive maintenance.Digital ACCPF82D is the robust ORP sensor for treatment of industrial water and wastewater and for processes in mining industries. It monitors:Inlet and outlet; Neutralization; Flotation; Leaching.
Benefits
Digital 1.0 offers extended storage of calibration and process data, enabling better trend identification and providing a future-proof basis for predictive maintenance and enhanced IIoT services.
Long time stable: Double junction provides better protection against electrode poisoning ions such as S2- or CN-.Robust polymer housing protects against mechanical damage. The sensor is suitable for flow and immersion installation; Minimum process downtime and extended sensor lifetime reduce operating costs.
Product details
