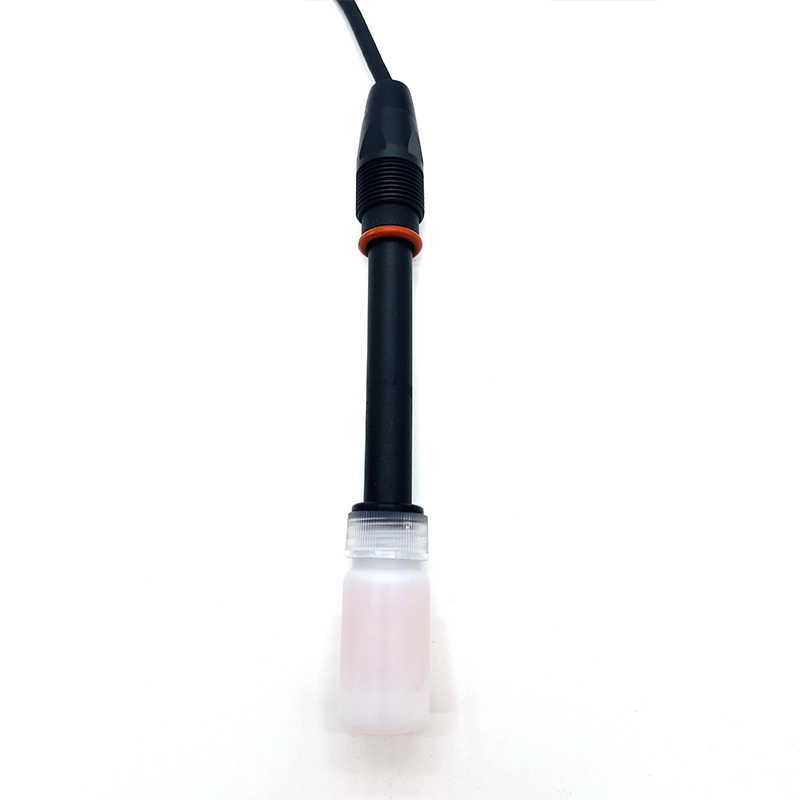

Antimony electrode:ACARTSOHF05Y （Hydrofluoric acid resistant pH electrode）

Antimony electrode, a hydrogen ion indicator electrode, also belongs to a pH electrode, conventional pH electrode head for glass bubble, antimony electrode head for an antimony rod, mainly because in the solution containing hydrofluoric acid, hydrofluoric acid will form corrosion of glass material, the ordinary bubble will soon rot, and antimony electrode can be very good to avoid corrosion, so antimony electrode is mainly used to measure the solution containing hydrofluoric acid medium pH.

Place of Origin: Shanghai, china

Purpose: Industry, laboratory, other

Warranty period: one year

Support customization: OEM, ODM

Logo: ACITEK

Model: ACARTSOHF05Y

Type: pH sensor

Equipped with a rechargeable battery: No

Material: PPS

Inquiry

Write a Review

Product parameters

Material	PPS shell (metal antimony-sensitive membrane)
Thread	PG13.5 thread
pH range	2.00-11.00pH (best resus)
Temperature	0-70℃ (range used)
Filler	KCl gel
Pressure	0 to 6bars
Length	5m cable
Connector	BNC connector (customizable)

Product Introduction

The measurement range of antimony electrode is generally different from the ordinary pH electrode, which is mainly 2-11pH. In the medium exceeding this range, the measurement error of antimony electrode will be larger. And the antimony electrodes need to be equipped with specialized instruments, such as our G300 or G400.

Suitable for chemical, metallurgical, pharmaceutical, paper, sugar, environmental protection and other industries pH continuous measurement and control.

Antimony electrode is particularly suitable for highly viscous, crystallization and other harsh processes, can work normally in the glass electrode is not competent in the medium, the disadvantage is in the pH value below 2, above 12 in the range of nonlinear error, the selection should pay attention to the best use in the range of 2-12pH, good performance in the range of 4-10pH。
