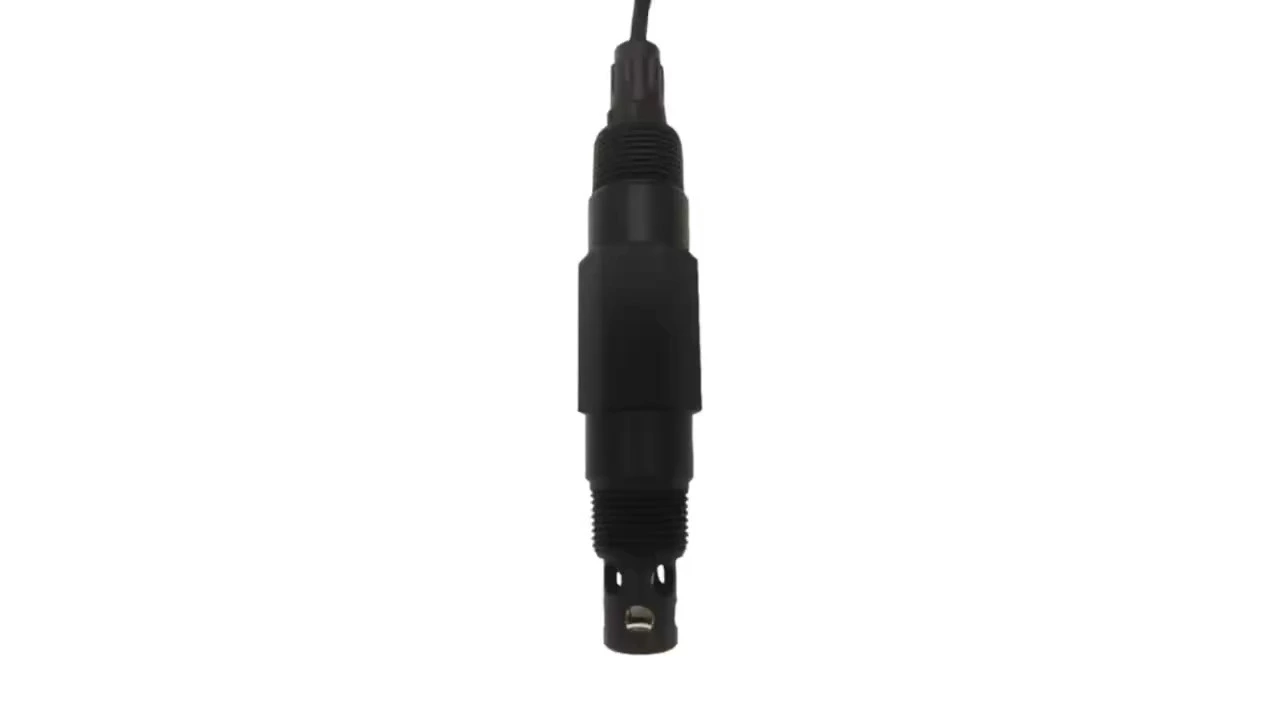

ACITEK Analog pH sensor ACCPF81
Place of Origin: Shanghai, china
purpose: Industry, laboratory, other
warranty period: one year
Support customization: OEM, ODM
Logo: ACITEK
model:ACCPF81
type: pH sensor
equipped with a rechargeable battery: No
Dimension: Length: 120mm (4.68 inch)
Ingress protection: IP68
Product Introduction
ACCPF81 is the robust pH sensor for processes in mining industries and treatment of industrial water and wastewater.
It monitors: Flotation; Leaching; Neutralization; Inlet and outlet.
Measuring principle: Potentiometric
Specs at a glance:
Product advantages
Suitable for flow and immersion installation; Long time stable: Second electrolyte bridge for better protection against electrode poisoning ions such as S2- or CN-;Robust polymer housing protects against mechanical damage; Optional flat membrane suitable for high flow rates, fibrous media, and mining applications.
Field of application
ACCPF81 is the analog simple solution for pH measurement in harsh environments. It measures reliably and accurately even in fibrous media and at high flow rates. With its integrated assembly, the electrode saves you space and time during flow or immersion installation.
Application: Water, waste water, process, galvanic.
Characteristic: Resistent against electrolyte poisoning and dirt repellent gel-electrode including process connection NPT 3/4". Optional with amplifier.
Product parameters
|
Measuring range |
pH 0-14 |
|
Measuring principle |
Gel-compact electrode with double chamber reference system, kalium nitrate bridge electrolyte and PTFE-diaphragm. |
|
Design |
Compact electrode in PPS housing with NPT3/4" process connection. |
|
Material |
PPS / glass / PTFE |
|
Dimension |
Length 120mm (4.68 inch) |
|
Process temperature |
-10°C - 110°C (14°F - 230°F) |
|
Process pressure |
max. 10 bar (145 psi) |
|
Temperature sensor |
Optional with integrated Pt100 or PT1000 or 30k or 10k. |
|
Connection |
fixed cable |
|
Ingress protection |
IP68 |
Product details
