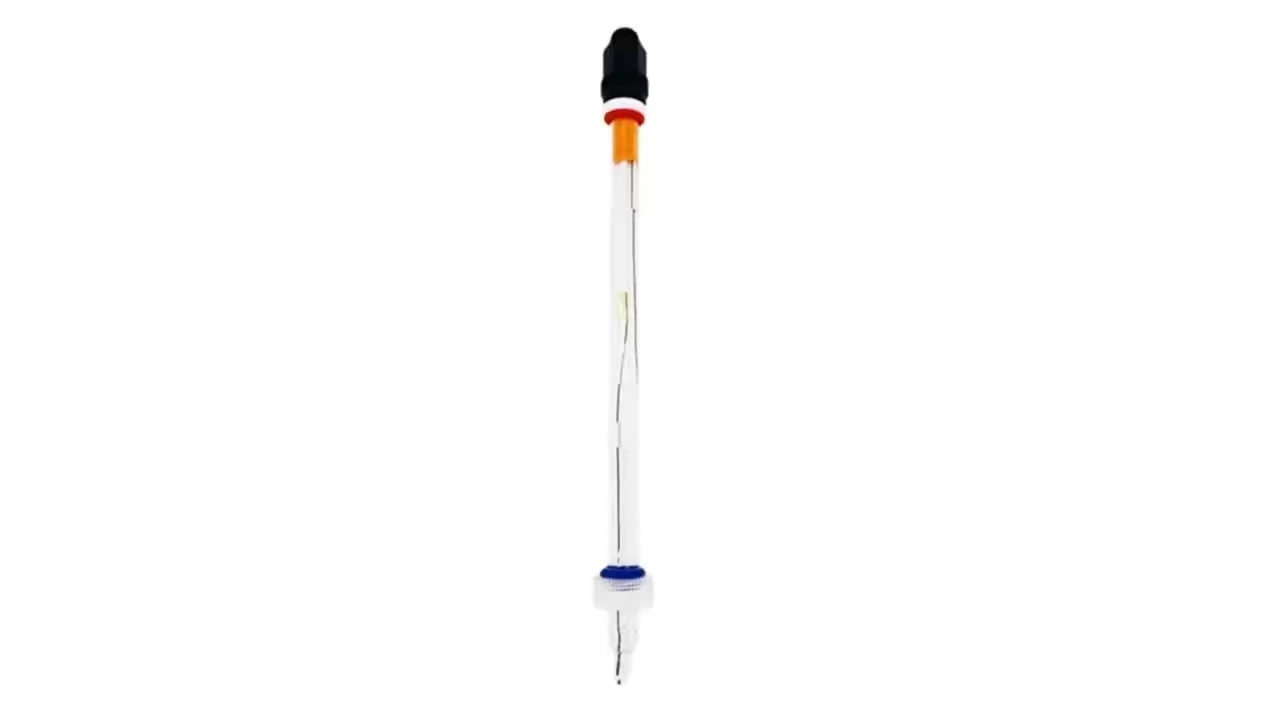

ACITEK ACFerm Plus PHI S8 325 AC238633-1253
Place of Origin: Shanghai, china
purpose: Industry, laboratory, other
warranty period: one year
Support customization: OEM, ODM
Logo: ACITEK
model:AC238633-1253
type: pH sensor
equipped with a rechargeable battery: No
Process Connection：PG13.5
Length：325 mm
Diameter：12 mm
Product Introduction
The ACFerm Plus sensor is designed specifically for the pharmaceutical and chemical industries, offering a stabilized sensor signal and extended diagnostic capabilities. This sensor combines Acitek’s high-performance technologies, including different glass membrane formulations for diverse applications, ACPhermlyte electrolyte, a pre-pressurized reference, and a clog-free HP Coatramic diaphragm. These features work together to enhance stability, improve accuracy, and extend the lifespan of the sensor, making it ideal for critical and demanding environments.
Glass Type Options&advantages
Product parameters
|
Process Connection |
PG13,5 |
|
Wetted Parts |
GΙass;Ceramic; |
|
Measuring Range |
pH 0 to 14 |
|
Electrolyte |
Pressurized ACPhermlyte |
|
Sensitivity |
57 to 59 mV / pH at 25 °C |
|
Zero Point |
0 ± 19 mV |
|
pH Glass Resistance |
Moderate |
|
Membrane Shape |
Spherical |
|
Diaphragm |
HP-Coatramic |
|
Number of Diaphragms |
1 |
|
Reference System |
ACITEK ACEveref-F, Silver ion barrier included |
|
O-ring Material |
FDA 21 CFR 177.2600; |
|
Serial Number |
Yes |
|
Recommended Storage |
ACITEK Storage Solution or 3 M KCl |
|
Certificate |
Yes, with measured values in Buffer pH 4.01 and pH 7.00 |
|
Diameter |
12 mm |
|
Autoclavable |
Yes |
|
Steam Sterilizable |
Yes |
|
CIP |
Yes |
|
Operating Temperature Range |
0 to 140 °C |
|
Sample min Conductivity |
90 µS/cm |
|
Pressure Range bar g |
0 to 6 bar |
|
pH Glass |
ACITEK Type PHI Glass |
|
Electrical Connector |
S8 |
|
a-length |
325 mm |
|
Liquid Earth |
No |
|
Temperature Sensor |
No |
