ACITEK, since 2005, specializes in water quality sensors, providing OEM/ODM service for pH, ORP, conductivity, DO, ion electrodes.

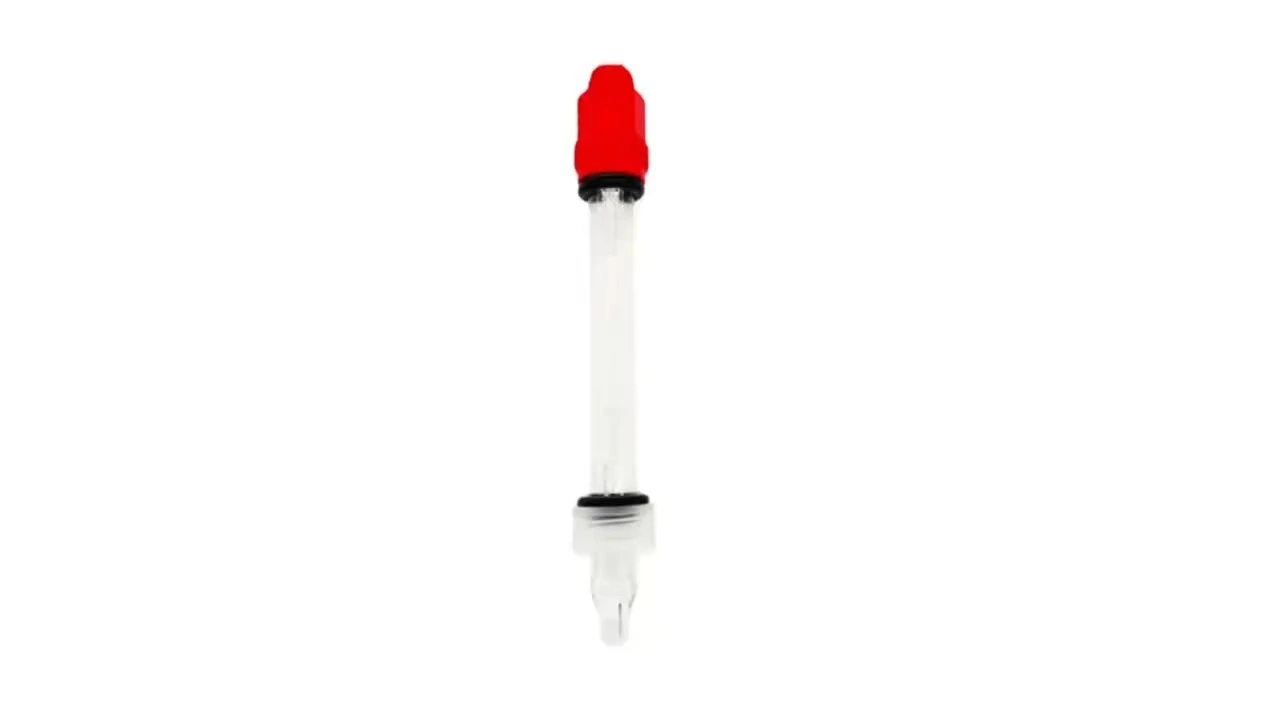

ACITEK ACEasyControl pH sensor AC238522 1

ACITEK ACEasyControl pH sensor AC238522 2

ACITEK ACEasyControl pH sensor AC238522 3

ACITEK ACEasyControl pH sensor AC238522 4

ACITEK ACEasyControl pH sensor AC238522 5

ACITEK ACEasyControl pH sensor AC238522 6

ACITEK ACEasyControl pH sensor AC238522

Name: ACITEK ACEasyControl pH sensor AC238522
Uploaded: 2026-01-09T10:51:37+08:00
Description: Place of Origin: Shanghai, china purpose: Industry, laboratory, other warranty period: one year Support customization: OEM, ODM Logo: ACITEK model:AC238522 type: pH sensor equipped with a rechargeable battery: No Electrical：Connector S8 Length：120 mm

Place of Origin: Shanghai, china

purpose: Industry, laboratory, other

warranty period: one year

Support customization: OEM, ODM

Logo: ACITEK

model:AC238522

type: pH sensor

equipped with a rechargeable battery: No

Electrical：Connector S8

Length：120 mm

Inquiry

Write a Review

Product Introduction

ACEasyControl sensors are entry-level pH sensors ideal for chemical or wastewater applications, especially in low-temperature and low-conductivity environments.

Viscous liquid gel-filled sensors provide a suitable upgrade for the entry level pH electrodes used in many industries. The added viscosity of the electrolyte helps slowing down the ingress of process contaminants from poisoning the reference element. Acitek’s ACEasyControl sensors provide reliable, entry-level pH measurement in chemical and wastewater applications, even under conditions of low temperature and low conductivity.

Product advantages

-The sensor's design ensures dependable performance in these demanding environments.

-Low Maintenance

-Engineered for minimal upkeep, reducing operational costs and downtime in demanding industrial settings.

-Common applications Water, Energy, & Environment, Water and Wastewater, Power

Generation, Chemical Processes.

Product parameters

Technical specification

Process Connection	PG13,5
Wetted Parts	GΙass；Ceramic； EPDM (Ethylene propylene elastomer)
pH Glass	Acitek Type HF Glass
Electrical Connector	S8
a-length	120 mm
Measuring Range	pH 0 to 14
Electrolyte	Gel electrolyte
Sensitivity	57 to 59 mV / pH at 25 °C
Zero Point	0 ± 19 mV
pH Glass Resistance	Moderate
Membrane Shape	Spherical
Diaphragm	Ceramic
Number of Diaphragms	1
Reference System	Ag/AgCl
Liquid Earth	No
Temperature Sensor	No
Serial Number	Yes
Recommended Storage	Acitek Storage Solution or 3 M KCl
Certificate	No
ATEX Approval	No
IECEx Approval	No
Diameter	12 mm
Autoclavable	No
Steam Sterilizable	No
CIP	No
Operating Temperature Range	0 to 60 °C
Sample min Conductivity	5 µS/cm
Pressure Range bar g	0 to 2 bar

Product details

Process Connection PG13.5

Reference System Ag/AgCl

A-length 120 mm

FAQS

Can cable length be customized？

Cable wires can be of different lengths.

How long is the lifespan of the sensor？

Sensor warranty for six months.

How should electrodes be stored if they are not used for a long time?

Usually immerse the electrode in a 3 mol/L KCl (potassium chloride) solution and do not let it dry.

What is the impact of temperature on pH measurement?

Temperature compensation is required for the electrodes, and the larger the temperature difference, the greater the numerical error.
